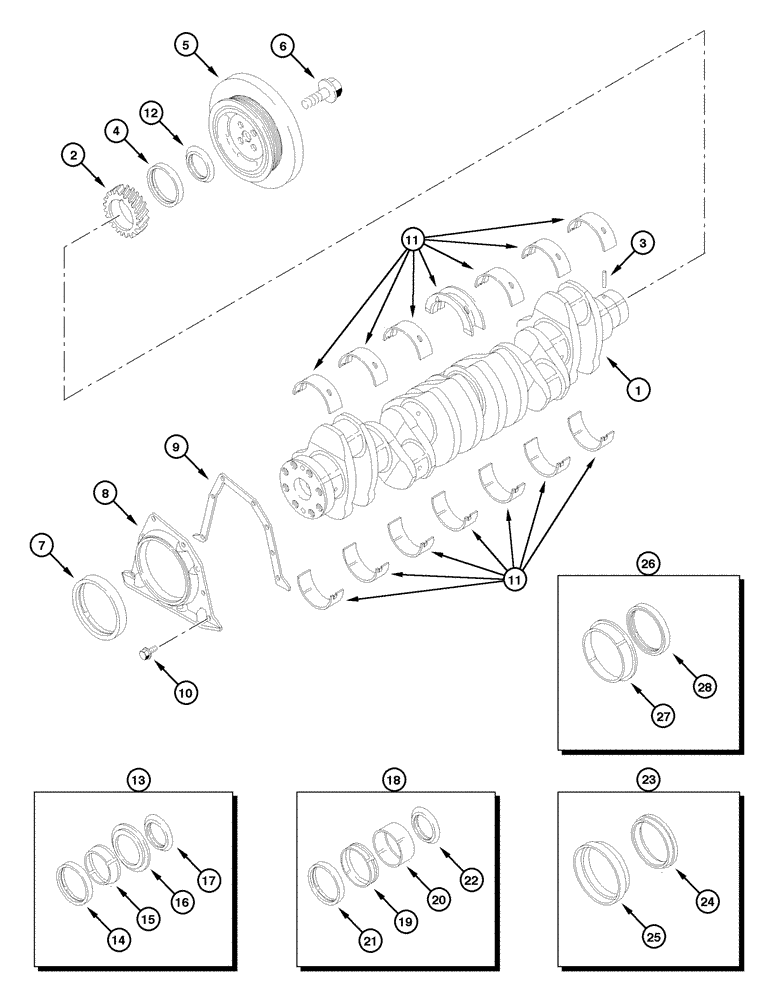

Запчасти Case 885 (02-44[01]) - CRANKSHAFT (02) - ENGINE

1

J918986

CRANKSHAFT

Assy

1шт.

2

J918776

GEAR

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

Guide

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL Front

1шт.

Order kit A77790 (item 13)

1шт.

5

J925568

DAMPER,246mm OD

1шт.

6

J906733

BOLT,Hex Flg, M14 x 1.5 x 35mm, Cl 12.9

Flange

4шт.

7

NSS

NOT SOLD SEPARAT

SEAL

1шт.

Order kit J353978 (item 23)

1шт.

8

J933384

REAR COVER

1шт.

9

J914301

GASKET

1шт.

10

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

8шт.

11

J945917

SET OF STD MAIN BRGS

1шт.

11

J945918

SET OF STD MAIN BRGS

(0.25mm)

1шт.

11

J945919

SET OF STD MAIN BRGS

(0.50mm)

1шт.

11

J945920

SET OF STD MAIN BRGS

(0.75mm)

1шт.

11

J945921

SET OF STD MAIN BRGS

(1.00mm)

1шт.

12

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

1шт.

Order kit A77790 (item 13)

1шт.

13

A77790

SEAL KIT

Front, Includes items 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL

1шт.

15

NSS

NOT SOLD SEPARAT

TOOL

1шт.

16

NSS

NOT SOLD SEPARAT

TOOL

1шт.

17

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

1шт.

18

J925626

SLEEVE

front, Includes items 19 - 22

1шт.

19

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

20

NSS

NOT SOLD SEPARAT

TOOL

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL

1шт.

22

J924987

SHIELD,77.14mm ID x 89.38mm OD x 6.35mm Thk

1шт.

23

J909411

SEAL

Kit Rear, Includes items 24, 25

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL

1шт.

25

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

26

J926126

TOOL

Kit sleeves rear, Includes items 27, 28

1шт.

27

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

28

NSS

NOT SOLD SEPARAT

SEAL

1шт.

J802525

RING

Thrust (0.25mm)

1шт.

Not shown

1шт.

J802526

RING

Thrust SM (0.50mm)

1шт.

Not shown

1шт.

J802527

RING

Thrust (0.50mm)

1шт.

Not shown

1шт.
