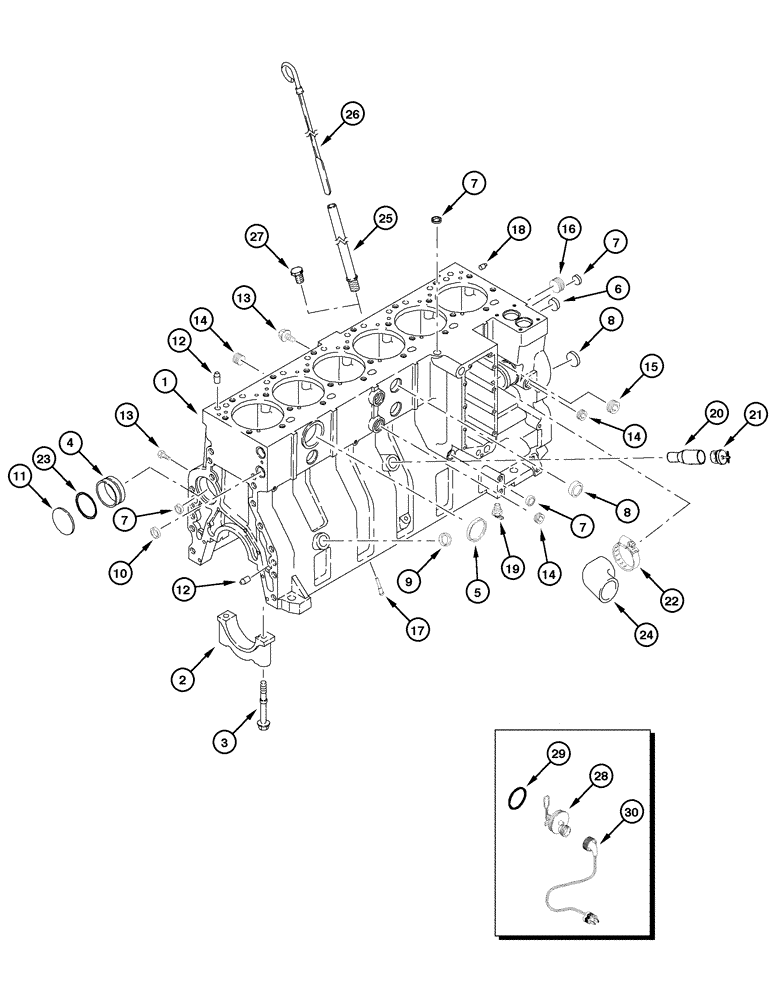

Запчасти Case 885 (02-42[01]) - CYLINDER BLOCK (02) - ENGINE

J934599

BLOCK

Partial

1шт.

1

J945936

BLOCK

1шт.

2

J936058

BEARING CAP

Bearing

7шт.

3

J916369

FLANGE BOLT,Hex, M14 x 2 x 128mm, Cl 10.9

14шт.

4

J945329

CAMSHAFT BEARING,60.08mm ID x 64.13mm OD x 25mm L

7шт.

5

A77782

PLUG

Expansion (58mm)

1шт.

6

A77586

PLUG

Expansion (28.9mm)

1шт.

7

A77506

PLUG

Expansion (34mm)

4шт.

8

J905401

PLUG

Expansion (35mm)

4шт.

9

J920706

PLUG

Expansion (22mm)

1шт.

If used

1шт.

10

A77530

PLUG

Expansion (30mm)

2шт.

If used

1шт.

11

J901969

PLUG

Expansion (70mm)

1шт.

12

J901846

PIN,12.01mm OD x 24mm L

Guide

4шт.

13

149877A1

PLUG

(1/8NPT)

6шт.

14

A77429

PLUG

(1/2NPT)

4шт.

15

A77505

PLUG

(3/4NPT)

2шт.

16

149876A1

PLUG

(1NPT)

1шт.

17

J928031

NOZZLE,8.5mm OD x 30mm L

Injection

12шт.

18

J900257

PIN,10.01mm OD x 16mm L

Guide

2шт.

19

149875A1

VALVE

Drain

1шт.

20

J905408

TUBE,35.13 mm ID x 52.39 mm OD x 100 mm L

Filling

1шт.

21

149904A1

COVER

Filling

1шт.

22

J918521

HOSE CLAMP,59mm - 83mm

1шт.

23

J926048

O-RING,0.07" Thk x 2.614" ID, -38, Cl 5, 75 Duro

1шт.

24

J920762

ELBOW

1шт.

25

149888A1

FLANGE

1шт.

26

149889A1

DIPSTICK

Level

1шт.

27

J905368

PLUG

1шт.

196804A1

KIT

Block heater, Includes items 28, 29, 30

1шт.

28

NSS

NOT SOLD SEPARAT

ELEMENT

1шт.

29

J910517

O-RING

1шт.

30

196466A1

ELECTRIC CABLE

1шт.
