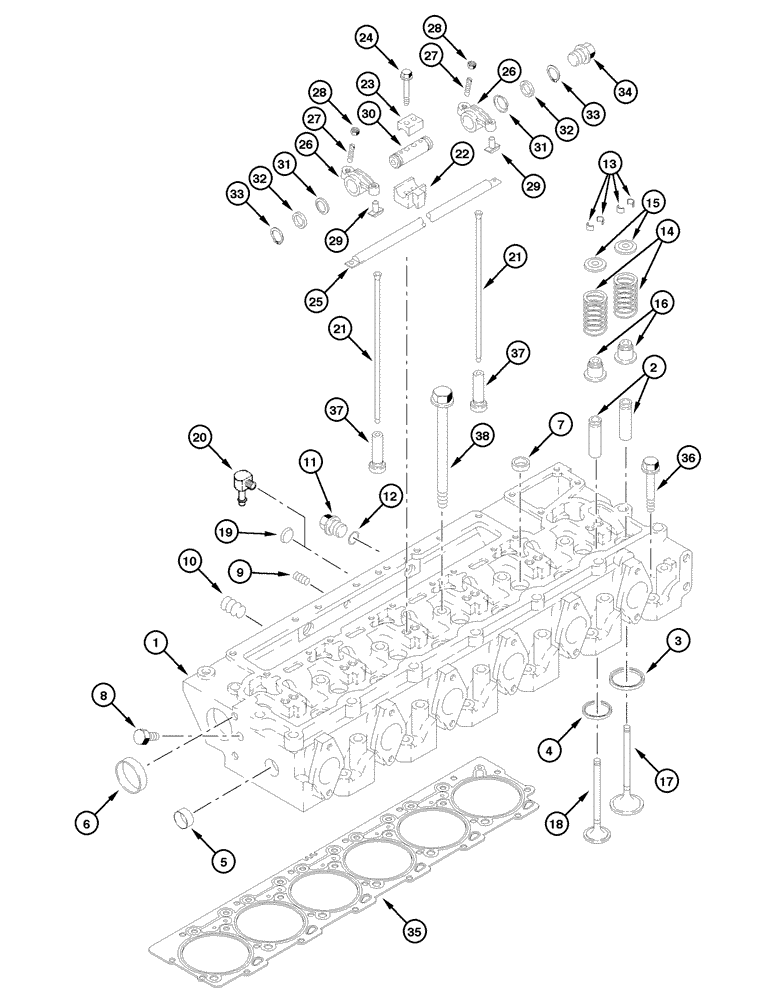

Запчасти Case 885 (02-38[01]) - CYLINDER HEAD - ASSEMBLY (02) - ENGINE

J936282

CYLINDER HEAD

Assy, Includes items 1 - 20

1шт.

1

J936180

HEAD ASSY.

Cylinder

1шт.

2

J925863

INTAKE VALVE GUIDE

12шт.

3

J908830

INSERT

Intake valve STD

6шт.

3

J925468

SEAT, VALVE

Intake (0.254mm)

6шт.

3

J925470

SEAT, VALVE

Intake (0.508mm)

6шт.

4

J928174

VALVE SEAT

Exhaust STD

6шт.

4

J929006

INSERT

Exhaust valve (0.254mm)

6шт.

4

J929007

INSERT

Exhaust valve (0.508mm)

6шт.

5

J920443

PLUG

Expansion (30mm)

1шт.

6

J900965

PLUG

Expansion (58mm)

2шт.

7

J914035

HOLE PLUG BUTTON

5шт.

8

149890A1

PLUG

(1/16NPT)

1шт.

9

A77428

PLUG

(1/4NPT)

1шт.

10

A77429

PLUG

(1/2NPT)

2шт.

11

J924148

PLUG,M22 x 1.5

2шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

Seal

2шт.

13

J901177

VALVE

Lock valve

24шт.

14

J906412

VALVE SPRING

12шт.

15

J912976

RETAINER

Spring

12шт.

16

J927642

SEAL

Retainer valve intake/exhaust

12шт.

17

J802463

STD INLET VALVE

STD ENGINE INLET VALVE

6шт.

18

J802085

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

6шт.

19

J912900

PLUG

Expansion (24mm)

1шт.

20

J924138

FITTING

1шт.

21

J905194

PUSH ROD

Valve

12шт.

22

J905870

SUPPORT

Lower

6шт.

23

J901693

CLAMP

Upper

6шт.

24

868-10065

12 PT SCREW,M10 x 65mm, Cl 12.9

12шт.

25

J919677

TUBE

1шт.

26

J901717

ROCKER

Assy, Includes items 27, 28

12шт.

27

J900706

SET SCREW,Sl, 3/8" - 24 x 40mm, Adj, Ball Point

1шт.

28

J927692

NUT

1шт.

29

NSS

NOT SOLD SEPARAT

INSERT

1шт.

30

J919435

SHAFT

6шт.

31

J906100

SPRING CUP

12шт.

32

J907206

WASHER,22.5mm ID x 30mm OD x 1mm Thk

12шт.

33

100-1187

SNAP RING,#87, Ext

12шт.

34

J907555

PLUG

12шт.

35

J938267

CYLINDER HEAD GASKET,2.01mm Thk

1шт.

36

J917729

BOLT,Flng, M14 x 80mm

12шт.

37

J931623

TAPPET

12шт.

38

J917728

BOLT

14шт.
