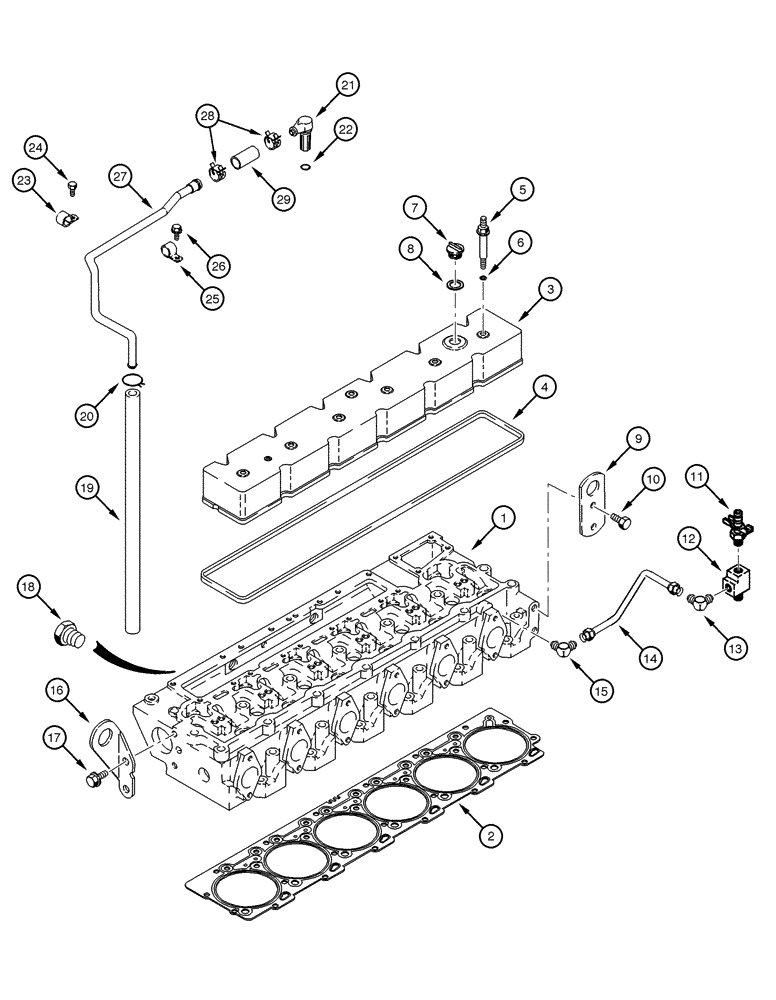

Запчасти Case 885 (02-34[01]) - CYLINDER HEAD VALVES COVER, GASKETS AND THERMOSTAT (02) - ENGINE

1

REF

INSTRUCTION

CYLINDER-HEAD

1шт.

Page 02-38

1шт.

2

J938267

CYLINDER HEAD GASKET,2.01mm Thk

1шт.

2

J935586

CYLINDER HEAD GASKET,1.91mm Thk

0.25mm

1шт.

2

J935587

CYLINDER HEAD GASKET,2.38mm Thk

0.50mm

1шт.

3

J907734

COVER ASSY

Valves

1шт.

4

J905449

SEAL,7.179mm W x 2090mm L

1шт.

5

J922639

STUD

6шт.

6

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

6шт.

7

J902468

FILLER CAP,Male

1шт.

8

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

Ring

1шт.

9

J907861

LIFTING EYE

1шт.

10

J903200

SCREW

2шт.

11

J909394

COCK, DRAIN

1шт.

12

149896A1

ADAPTER

1шт.

13

414476A1S

ELBOW

90°

1шт.

14

J930697

TUBE

1шт.

15

149895A1

ELBOW

1шт.

16

J906440

LIFTING EYE

1шт.

17

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

18

J906619

PLUG,1/8" - 27

1шт.

19

J918616

TUBE,680.00 mm

1шт.

20

J907740

CLAMP

Lock

1шт.

21

J935113

ELBOW

1шт.

22

J936331

SEAL,17.7mm ID x 22.74mm OD x 3.5mm Thk

1шт.

23

A77538

CLIP

1шт.

24

J901249

FLANGE BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

1шт.

25

J907741

CLAMP,15.88mm ID, 9.52mm Bolt Hole, P Type

1шт.

26

J912072

SELF-TAP SCREW

1шт.

27

J909669

TUBE,15.9-19 mm OD x 642.7 mm L

1шт.

28

J937613

HOSE CLAMP

Lock

2шт.

29

J930827

HOSE,51.00 mm

1шт.
