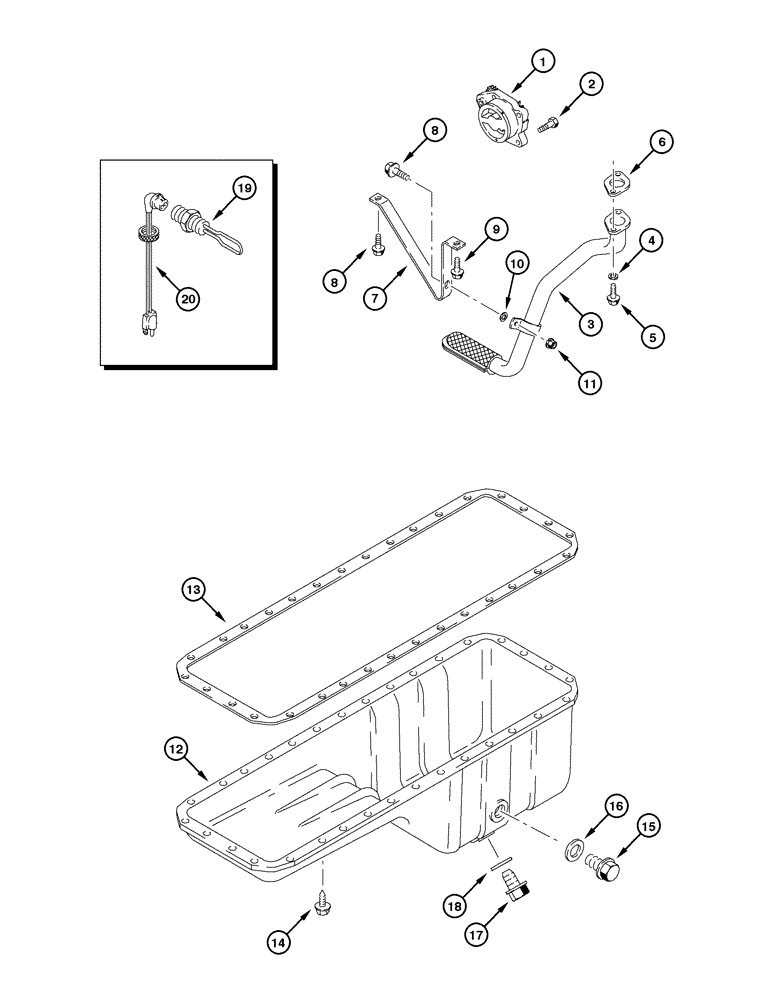

Запчасти Case 885 (02-32[01]) - LUBRICATING OIL PUMP AND PAN (02) - ENGINE

1

J948071

PUMP,24.17 CC

Oil

1шт.

2

J900677

BOLT,Hex

4шт.

3

J921719

TUBE

Suction

1шт.

4

J926865

SPACER,6.9mm ID x 12.7mm OD x 14mm L

2шт.

5

845-6030

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

2шт.

6

J914302

GASKET

1шт.

7

J927611

BRACKET

1шт.

8

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

2шт.

9

J901865

FLANGE BOLT,Hvy Hex, M6 x 20mm, Cl 8.8, Full Thd

1шт.

10

J910960

WASHER

1шт.

11

J906216

FLANGE NUT

Flange

1шт.

12

J914015

ENGINE OIL PAN

1шт.

13

J938160

OIL PAN GASKET SET

1шт.

14

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

32шт.

15

J924148

PLUG,M22 x 1.5

1шт.

16

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

17

J924147

PLUG,M18 x 1.5

1шт.

18

J920773

SEALING WASHER

1шт.

A77580

SERVICE KIT

Heater oil

1шт.

19

NSS

NOT SOLD SEPARAT

ELEMENT heater, Includes items 19, 20

1шт.

20

196466A1

ELECTRIC CABLE

1шт.

A77999

GASKET KIT

1шт.

Includes items 6,13,16,18

1шт.
