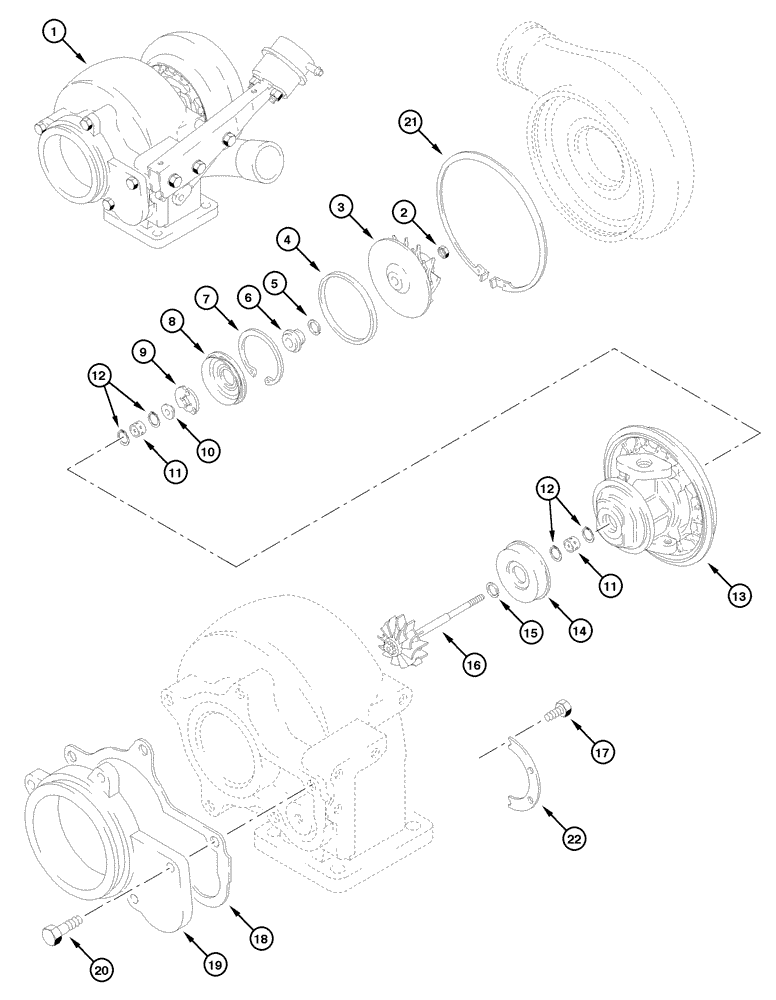

Запчасти Case 885 (02-26[01]) - TURBOCHARGER - ASSEMBLY (02) - ENGINE

1

J535638

TURBOCHARGER

Assy

1шт.

Includes items on page 02-28

1шт.

J535324

CARTRIDGE

Assy, Includes items 2 - 22

1шт.

2

NSS

NOT SOLD SEPARAT

NUT

1шт.

3

NSS

NOT SOLD SEPARAT

TURBINE

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL

1шт.

6

NSS

NOT SOLD SEPARAT

RING

1шт.

7

NSS

NOT SOLD SEPARAT

RING LOCK

1шт.

8

NSS

NOT SOLD SEPARAT

DEFLECTOR

1шт.

9

NSS

NOT SOLD SEPARAT

BEARING THRUST

1шт.

10

NSS

NOT SOLD SEPARAT

COLLAR

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING

2шт.

12

NSS

NOT SOLD SEPARAT

RING

4шт.

13

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

14

NSS

NOT SOLD SEPARAT

PROTECTOR

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL

1шт.

16

NSS

NOT SOLD SEPARAT

SHAFT and rotor

1шт.

17

J759917

SET SCREW

6шт.

18

J535243

GASKET,0.25mm Thk

Housing

1шт.

19

J528010

ADAPTER

1шт.

20

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

5шт.

21

J533163

SNAP RING

1шт.

22

J534309

PLATE

Lock

2шт.

J575169

REPAIR KIT

1шт.

Includes items 2, 4, 5, 7, 8, 9, 11, 12, 15, 17

1шт.
