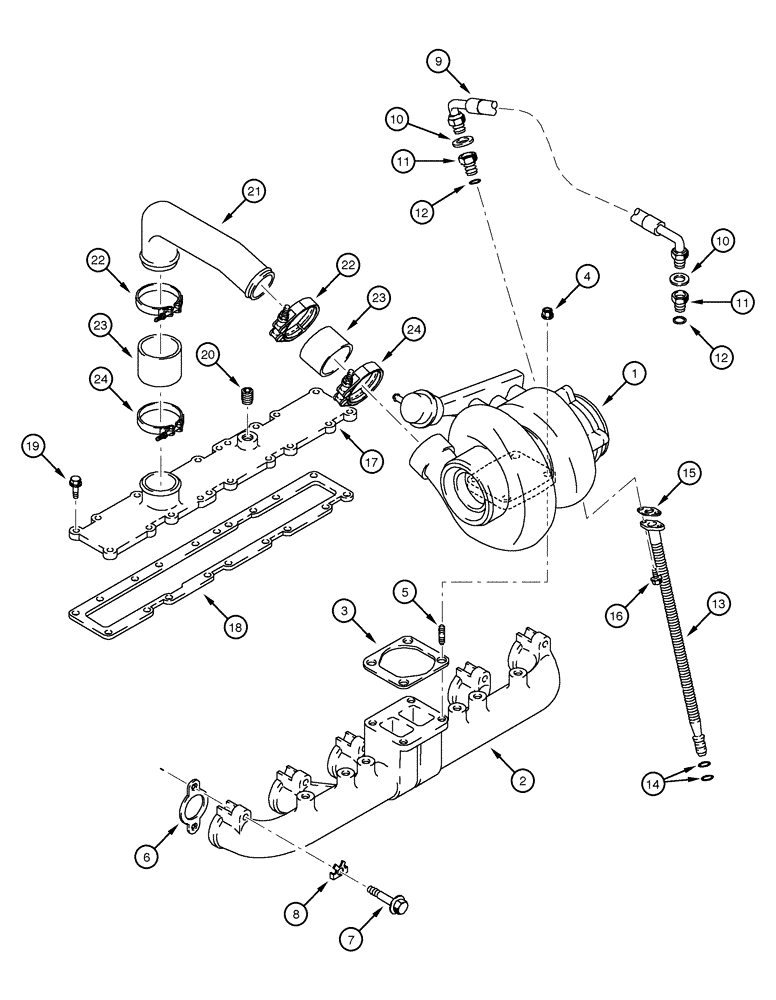

Запчасти Case 885 (02-24[01]) - TURBOCHARGER - MOUNTING (02) - ENGINE

1

J535638

TURBOCHARGER

Assy

1шт.

Page 02-26 and 02-28

1шт.

2

J929779

MANIFOLD

Exhaust

1шт.

3

J911941

GASKET

1шт.

4

J818824

FLANGE NUT

Flange

4шт.

5

J818823

STUD

4шт.

6

J929012

GASKET,0.5mm Thk

1шт.

7

J929537

BOLT

12шт.

8

J914708

LOCKING PLATE

12шт.

9

J921530

HOSE,9.53mm ID x 385mm L

1шт.

10

J924389

SEALING WASHER

Copper

2шт.

11

J919687

HYD CONNECTOR

Includes item 12

2шт.

12

149894A1

O-RING

1шт.

13

J928629

TUBE

Includes item 14

1шт.

14

J928624

SEALING RING,0.103" Thk x 0.674" ID, -115

SEALRING

2шт.

15

J937706

GASKET,0.79mm Thk

1шт.

16

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

17

J922648

COVER ASSY

1шт.

18

J914311

MANIFOLD GASKET

Manifold

1шт.

19

845-8030

BOLT,Hvy Hex, M8 x 30mm, Cl 8.8

18шт.

20

A77429

PLUG

1шт.

21

J914944

TUBE,63.5 mm OD x 207.8, 91.9 mm L

1шт.

22

J924386

COLLAR CLAMP

4шт.

23

J916437

HOSE

2шт.
