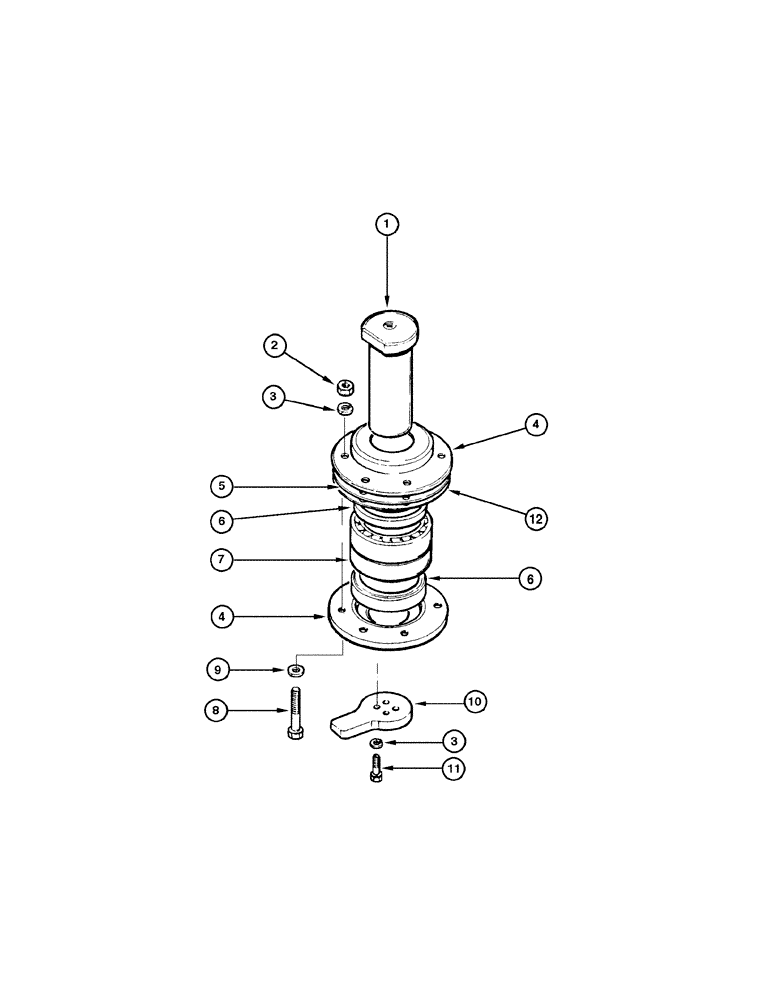

Запчасти Case 885 (09-008[01]) - UPPER ARTICULATION - ASSEMBLY (09) - CHASSIS/ATTACHMENTS

1

75213817

PIN,66.72mm OD x 180mm L

1шт.

2

70911028

NUT

6шт.

3

70912441

LOCK WASHER

Lock

10шт.

4

75213783

FLANGE

2шт.

5

75214969

SHIM,0.4mm Thk

1шт.

6

75213761

SEAL RETAINER

2шт.

7

73069310

BEARING ASSY,66.67mm ID x 112.71mm OD x 60.33mm W

1шт.

8

70921567

SCREW

6шт.

9

70928188

WASHER,13.49mm ID x 26.98mm OD x 2.41mm Thk

6шт.

10

73074170

PLATE

1шт.

11

70920585

BOLT

4шт.

12

75237665

SHIM,0.15mm Thk

1шт.
