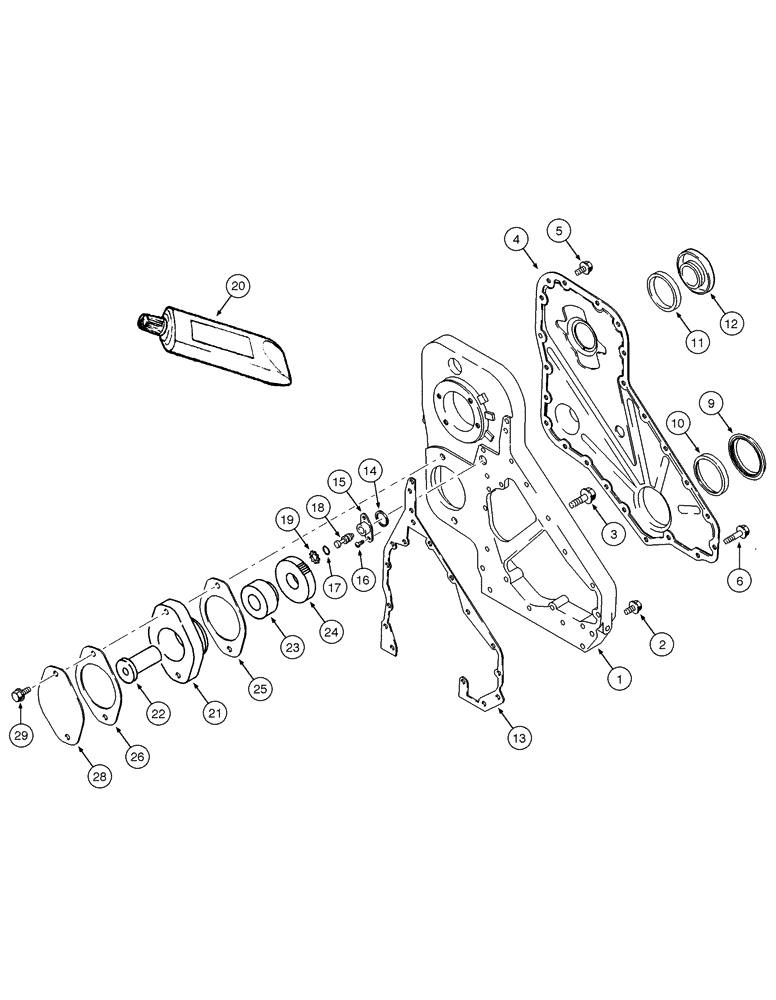

Запчасти Case 885 (02-22[01]) - TIMING GEAR HOUSING (02) - ENGINE

1

J926721

MOTOR HOUSING

1шт.

2

J926846

FLANGE BOLT

Flange

5шт.

3

854-12050

BOLT,Hvy Hex, M12 x 50mm, Cl 10.9

4шт.

4

J926847

COVER

1шт.

5

J925883

FLANGE BOLT,Hex, M8 x 16mm, Cl 10.9

Flange

16шт.

6

J926863

FLANGE BOLT

Flange

6шт.

9

75286075

GUARD

1шт.

10

75286665

GASKET

1шт.

11

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

12

J903463

PLUG,M63 x 5

1шт.

13

J926757

GASKET

1шт.

14

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING

1шт.

15

J919683

HOUSING

1шт.

16

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

17

J913994

O-RING

1шт.

18

J903924

PIN,18.87mm OD x 55mm L

1шт.

19

J904849

SNAP RING,0.875", Int, #87

1шт.

20

J823494

SEALANT

1шт.

J924882

ANGLE DRIVE

Hydraulic Pump Assy, Includes items 21 - 24

1шт.

21

J924881

ADAPTER

1шт.

22

J923242

SHAFT

Drive

1шт.

23

J902601

BEARING, ROLLER,35mm ID x 64mm OD x 37mm W

1шт.

24

J902595

GEAR

1шт.

25

J913287

GASKET,1.05mm Thk

1шт.

26

A77441

GASKET

1шт.

27

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

1шт.

28

J914868

COVER

1шт.

29

J902115

FLANGE BOLT,Hex, M12 x 65mm, Cl 10.9

2шт.
