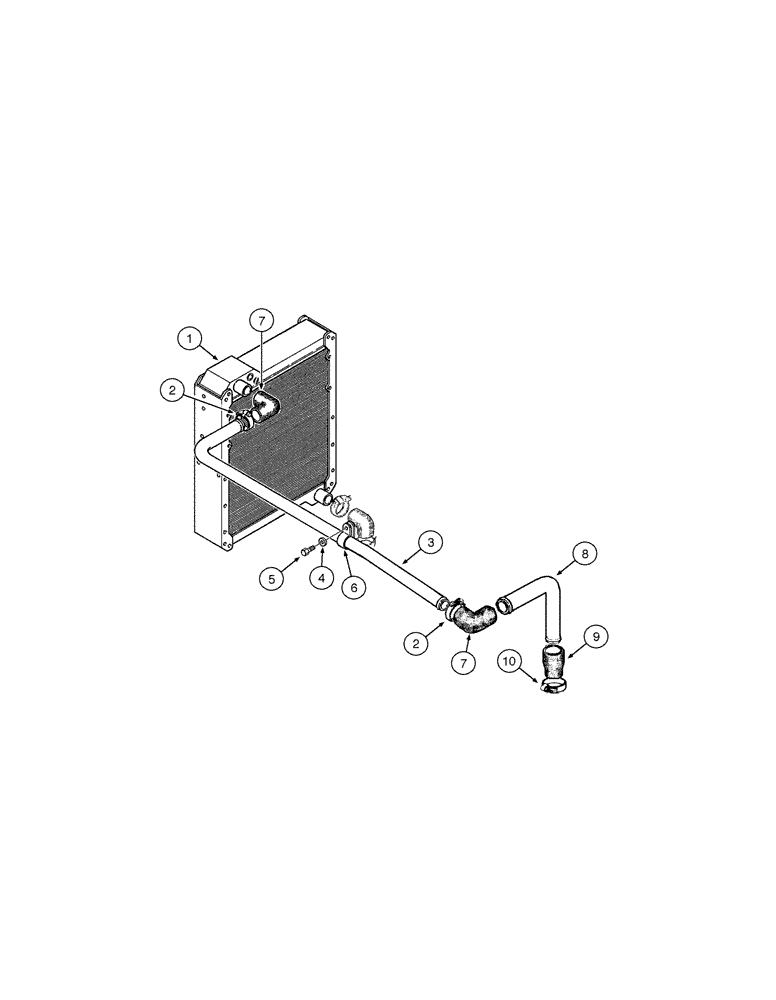

Запчасти Case 885 (02-08[01]) - COOLING SYSTEM - TUBING (02) - ENGINE

1

REF

INSTRUCTION

RADIATOR Assy

1шт.

Page 02-04

1шт.

2

70921914

CLAMP

6шт.

3

75324846

PIPE

1шт.

4

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

1шт.

5

16043631

SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd

1шт.

6

70928439

CLAMP

1шт.

7

75320219

RADIATOR HOSE,57.00 mm ID x 100.00 mm, SAE J 20R4-DI

2шт.

8

75324849

PIPE

1шт.

9

75320808

HOSE,45.00 mm ID, 57.00 mm ID x 100.00 mm

1шт.

10

70927313

CLAMP

1шт.
