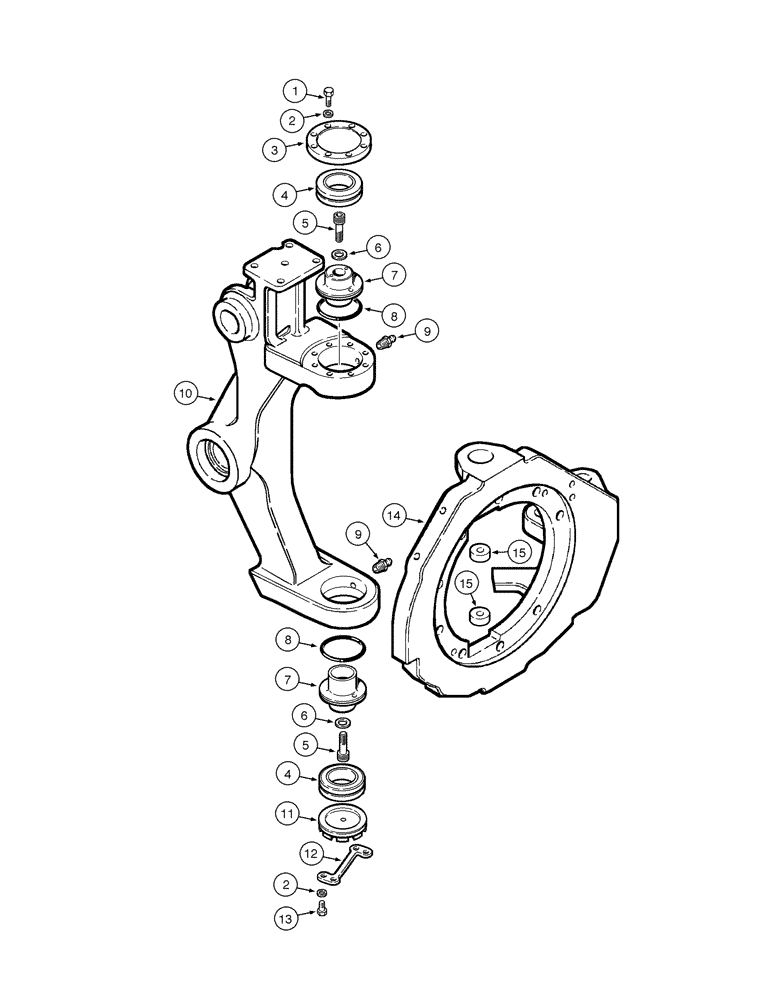

Запчасти Case 885 (06-48[01]) - FRONT AXLE - LEFT SIDE STEERING KNUCKLE - ASSEMBLY (06) - POWER TRAIN

1

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

8шт.

2

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

10шт.

3

87647428

COVER

1шт.

4

87663317

SPH ROLLER BEARING,45mm ID x 75mm OD x 19mm W

2шт.

5

14422221

HEX SOC SCREW,M12 x 40mm, Cl 8.8

2шт.

6

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

LOCK

2шт.

7

87647425

PIN

2шт.

8

1960253

SEAL,66.8mm ID x 75.01mm OD x 2.69mm Thk

2шт.

9

13407211

LUBE NIPPLE,M10 x 1

2шт.

10

87667877

FORK

Assy

1шт.

11

87647427

PIN

1шт.

12

87647424

COVER PLATE

1шт.

13

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

14

87667887

FLANGE

1шт.

15

87648784

BUSHING,10.2mm ID x 32mm OD x 15mm L

2шт.
