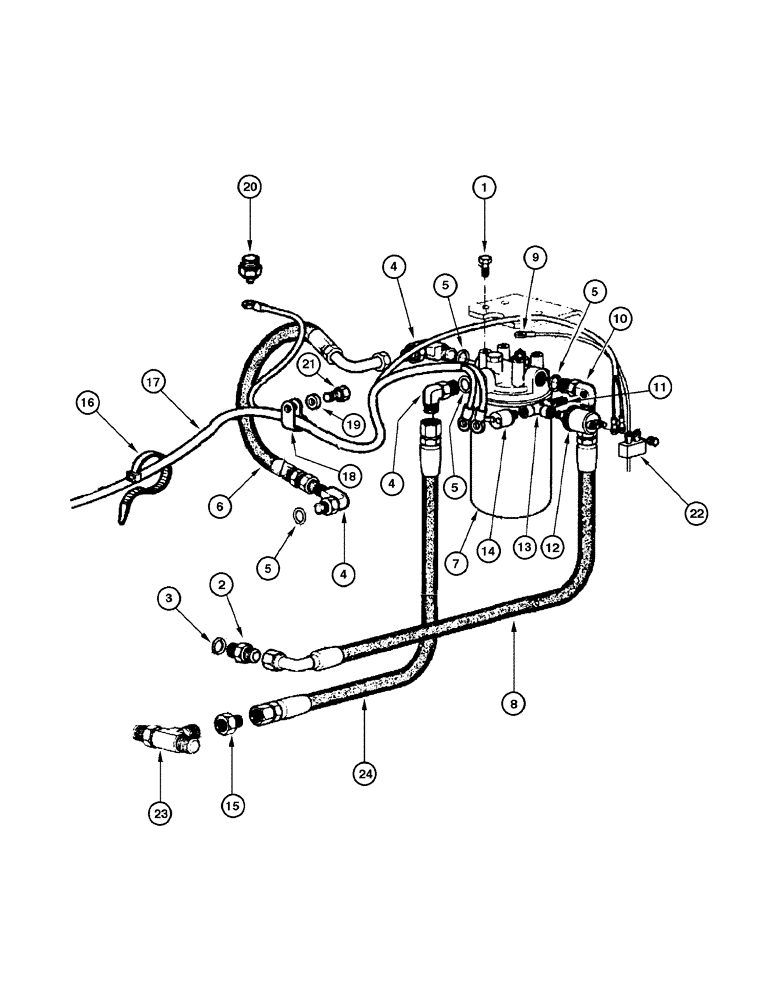

Запчасти Case 885 (06-08[01]) - TRANSMISSION - LUBRICATING SYSTEM (06) - POWER TRAIN

1

11106031

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

4шт.

2

70923174

HYD CONNECTOR

Includes item 3

1шт.

3

70921206

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

70924026

ELBOW

Includes item 5

3шт.

5

70921206

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3шт.

6

73162142

FLEXIBLE HOSE,22.2mm ID x 750mm L, SAE 100R5

1шт.

7

REF

INSTRUCTION

FILTER Oil

1шт.

Page 06-10

1шт.

8

73162142

FLEXIBLE HOSE,22.2mm ID x 750mm L, SAE 100R5

1шт.

9

75253138

ELECTRIC CABLE

1шт.

10

75255651

ELBOW

1шт.

11

70926031

HYD CONNECTOR

1шт.

12

75259844

SENSOR

1шт.

13

70901702

3 WAY CONNECTION

1шт.

14

73139080

PRESSURE SWITCH

1шт.

15

75238305

HYD CONNECTOR

1шт.

16

75201641

CLAMP

10шт.

17

75322301

ELECTRIC CABLE

Transmission

1шт.

18

70927155

CLIP

1шт.

19

70930370

WASHER,0.44" ID x 0.69" OD x 0.11" Thk

1шт.

20

1983238C1

SENSOR,1/2" - 14

1шт.

21

11106631

SCREW,Hex, M10 x 35mm, Cl 10.9, Full Thd

1шт.

22

75323377

RESISTOR

1шт.

23

70922739

HYD CONNECTOR

1шт.

24

73162141

HOSE,25.4mm ID x 940mm L, SAE 100R5

1шт.
