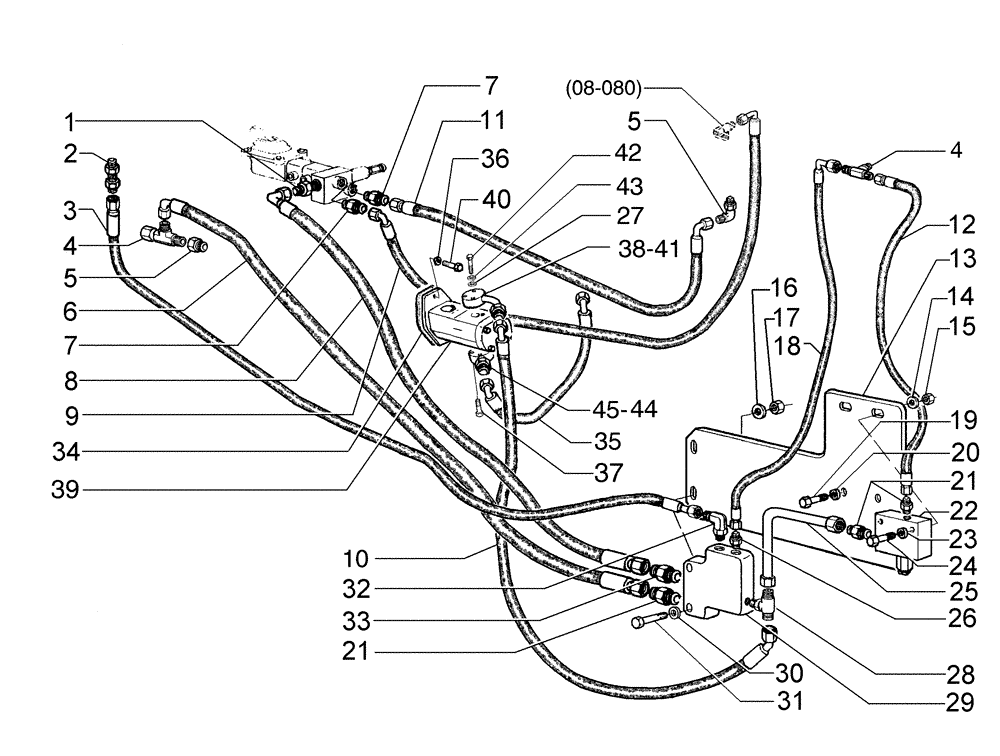

Запчасти Case 885 (05-04[01]) - BRAKE AND STEERING - HYDRAULIC CIRCUIT (05) - STEERING

1

75257337

HYD CONNECTOR

1шт.

2

70928916

HYD CONNECTOR

1шт.

3

75257334

HOSE ASSY.

1шт.

4

70921298

3 WAY CONNECTION

3шт.

5

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

1шт.

6

75257242

FLEXIBLE HOSE

1шт.

7

75257336

HYD CONNECTOR

2шт.

8

75257244

FLEXIBLE HOSE

1шт.

9

75257241

FLEXIBLE HOSE,12.7mm ID x 2775mm L, SAE 100R1

1шт.

10

75257243

FLEXIBLE HOSE,16mm ID x 780mm L, SAE 100R2

1шт.

11

75257245

FLEXIBLE HOSE

1шт.

12

75237612

FLEXIBLE HOSE

1шт.

13

75257158

BRACKET

1шт.

14

70677004

WASHER,7.14mm ID x 15.88mm OD x 3.42mm Thk

2шт.

15

70920329

NUT

2шт.

16

10516671

LOCK WASHER

2шт.

17

16100821

NUT,M8, Cl 10

2шт.

18

75257346

FLEXIBLE HOSE

1шт.

19

70921175

BOLT

2шт.

20

12646921

WASHER,12.2mm ID x 28mm OD x 3mm Thk

2шт.

21

70921409

HYD CONNECTOR

3шт.

22

75257335

VALVE PRESSURE RELIE

VALVE relief

1шт.

Page 08-078

1шт.

23

70928190

WASHER

4шт.

24

70934150

SCREW

2шт.

25

75255618

TUBE,9.7 mm ID, 12.7 mm OD, 74, 59 mm Length

1шт.

26

70923163

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

1шт.

27

70929289

REDUCER

1шт.

28

70925857

FITTING

1шт.

29

73163844

HYDRAULIC VALVE

VALVE priority

1шт.

Page 05-10

1шт.

30

10519621

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

31

16044531

SCREW,Hex, M8 x 65mm, Cl 10.9

2шт.

32

70922571

ELBOW

1шт.

33

70921326

HYD CONNECTOR

1шт.

34

75208360

SPACER

1шт.

35

70651322

GASKET,0.76mm Thk

1шт.

36

10516871

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

2шт.

37

11113731

SCREW,Hex, M12 x 75mm, Cl 10.9

2шт.

38

75252536

TUBE

1шт.

39

75324054

HYDRAULIC PUMP,19 CC

PUMP oil

1шт.

Page 08-076

1шт.

39

75324054R

REMAN-HYD PUMP

885 MOTOR GRADER TIER 0 - TIER 2 (BR) ASN N8AF05114, PUMP oil (1/08-)

1шт.

39

75324054C

CORE-HYDRAULIC PUMP

Return Number

1шт.

40

70917733

SCREW

2шт.

41

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

42

15212721

BOLT,Hex, M6 x 40mm, Cl 8.8, Full Thd

3шт.

43

10516471

LOCK WASHER

6шт.

44

14496431

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

6шт.

45

75252527

TUBE

1шт.

46

14457680

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

47

10903431

BOLT,Hex, M6 x 45mm, Cl 10.9

3шт.

48

75253069

FLEXIBLE HOSE

1шт.
