(04.06[00]) - ELECTRIC SYSTEM - MAIN

Запчасти Case 885 (04.06[00]) - ELECTRIC SYSTEM - MAIN (04) - ELECTRICAL SYSTEMS

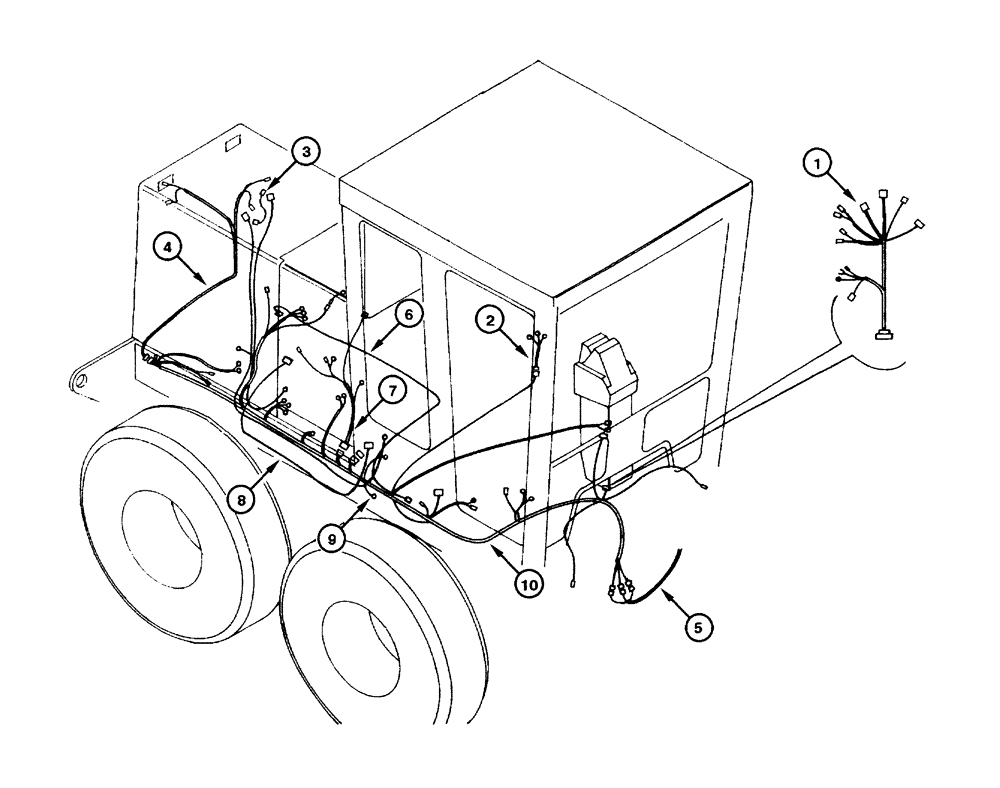

Схема запчастей Case 885 - (04.06[00]) - ELECTRIC SYSTEM - MAIN (04) - ELECTRICAL SYSTEMS
10
4
8
5
1
2
6
7
3
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

75284683

ELECTRIC CABLE

Harness steering column

1шт.

2

75249889

ELECTRIC CABLE

parking brake

1шт.

3

8321507

CABLE,350mm L

battery

1шт.

4

75320284

HARNESS

rear lights

1шт.

5

75322416

HARNESS

Harness front headlight

1шт.

6

75249895

ELECTRIC CABLE

transmission

1шт.

7

75282745

ELECTRIC CABLE

Harness sensor

1шт.

8

75257984

HARNESS

cut-off

1шт.

9

75239845

ELECTRIC CABLE,700mm L

ground

1шт.

10

75320224

HARNESS

main

1шт.

Выбрано товаров: 10
