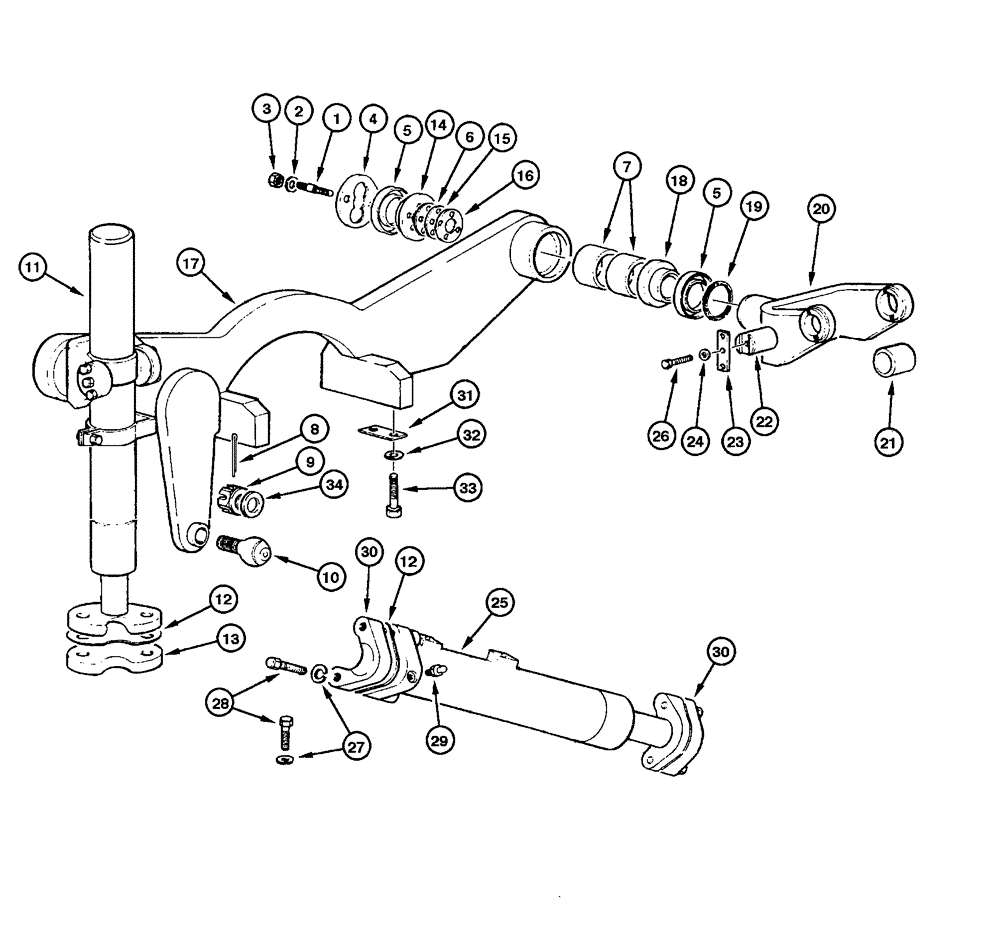

Запчасти Case 885 (08.65[00]) - CYLINDER - SADDLE AND ACTUATING (OPTIONAL) (08) - HYDRAULICS

1

75245603

STUD

8шт.

2

70931523

WASHER

8шт.

3

70915972

NUT

8шт.

4

75248669

COVER

2шт.

5

8291995

SEAL

4шт.

6

75248665

SHIM

4шт.

7

79106797

BUSHING,70.21mm ID x 85.11mm OD x 58mm L

4шт.

8

70900808

COTTER PIN,1/8" x 1 1/2"

1шт.

9

70911174

NUT

1шт.

9

75326480

NUT

FOR CHASIS N5AF05004 AND UP

1шт.

10

73125403

BALL

1шт.

10

75326511

BALL STUD,1" - 14

FOR CHASIS N5AF05004 AND UP

1шт.

11

75220709

CYLINDER,Double Acting, 50mm Rod, 578mm Stroke

1шт.

12

70620920

SHIM,63.5mm OD x 0.38mm Thk

32шт.

13

75251464

COVER

2шт.

14

75248664

COVER

2шт.

15

75248666

SHIM

3шт.

16

75248667

SHIM

4шт.

17

75251510

SUPPORT

1шт.

18

75248663

RING

2шт.

19

70924686

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

2шт.

20

75248662

YOKE

2шт.

21

73125404

BUSHING

4шт.

22

73125400

PIN,37.87mm OD x 57.15mm L

4шт.

23

70607617

PIN,15.88mm OD x 76.2mm L

4шт.

24

70910287

LOCK WASHER

12шт.

25

75220709

CYLINDER,Double Acting, 50mm Rod, 578mm Stroke

1шт.

25

75220709R

REMAN-HYD CYLINDER

885 MOTOR GRADER - ASN 024001

1шт.

25

75220709C

CORE-HYD CYLINDER

Return Number

1шт.

26

70923276

SCREW,Hex, 3/8" - 24 x 1", Gr 8

12шт.

27

70914726

LOCK WASHER

8шт.

28

70923137

SCREW

8шт.

29

70914465

LUBE NIPPLE

7шт.

30

70620479

CUP COVER

2шт.

31

73130333

SHIM,.06" Thk

2шт.

32

70928452

WASHER

8шт.

33

11398137

BOLT,Hex, M24 x 2 x 80mm, Cl 10.9

8шт.

34

70900822

WASHER

1шт.

34

75326490

WASHER,26.9mm ID x 63.5mm OD x 4.2mm Thk

WASHER FOR CHASIS N5AF05004 AND UP

1шт.
