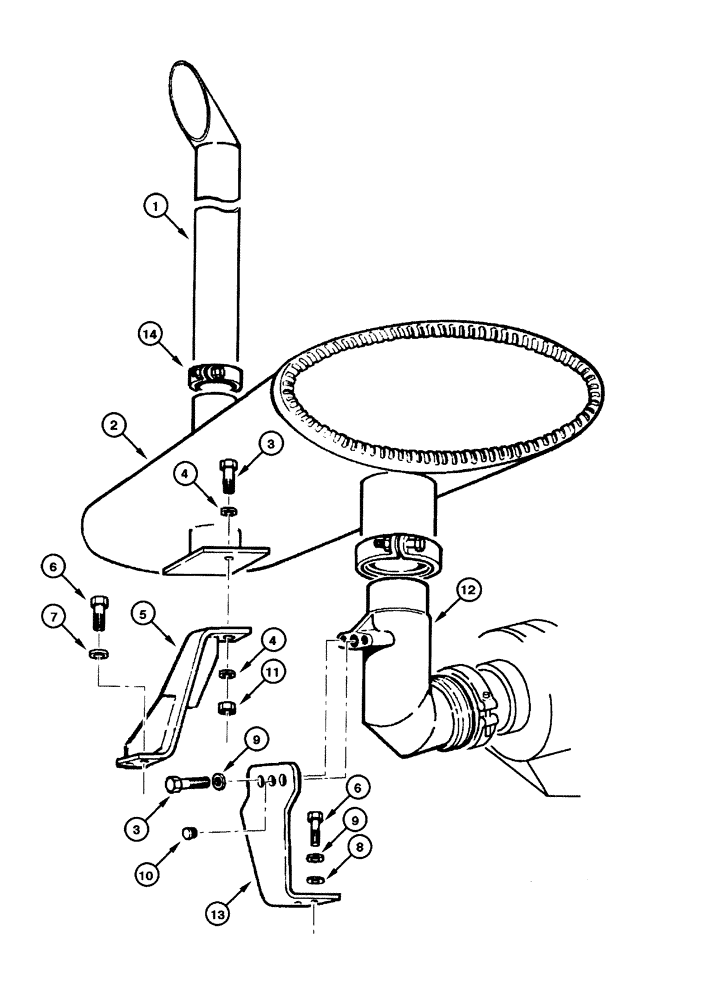

Запчасти Case 885 (02.07[00]) - MUFFLER AND EXHAUST SYSTEM (02) - ENGINE

1

75247197

EXHAUST SYSTEM PIPE,96.5 mm ID, 99.5 mm OD, 1040 mm Length

1шт.

2

73121707

MUFFLER

1шт.

3

11112331

BOLT,Hex, M12 x 28mm, Cl 10.9, Full Thd

1шт.

4

10517079

LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk

2шт.

5

75250341

SUPPORT

1шт.

6

11106031

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

2шт.

7

12646921

WASHER,12.2mm ID x 28mm OD x 3mm Thk

2шт.

8

10516879

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

4шт.

9

70977006

WASHER

1шт.

10

70901652

PLUG

1шт.

11

11701721

NUT,M10, Cl 10

1шт.

12

75252028

ELBOW

1шт.

13

75250340

SUPPORT

BRACKET

1шт.

14

75249100

CLAMP

1шт.
