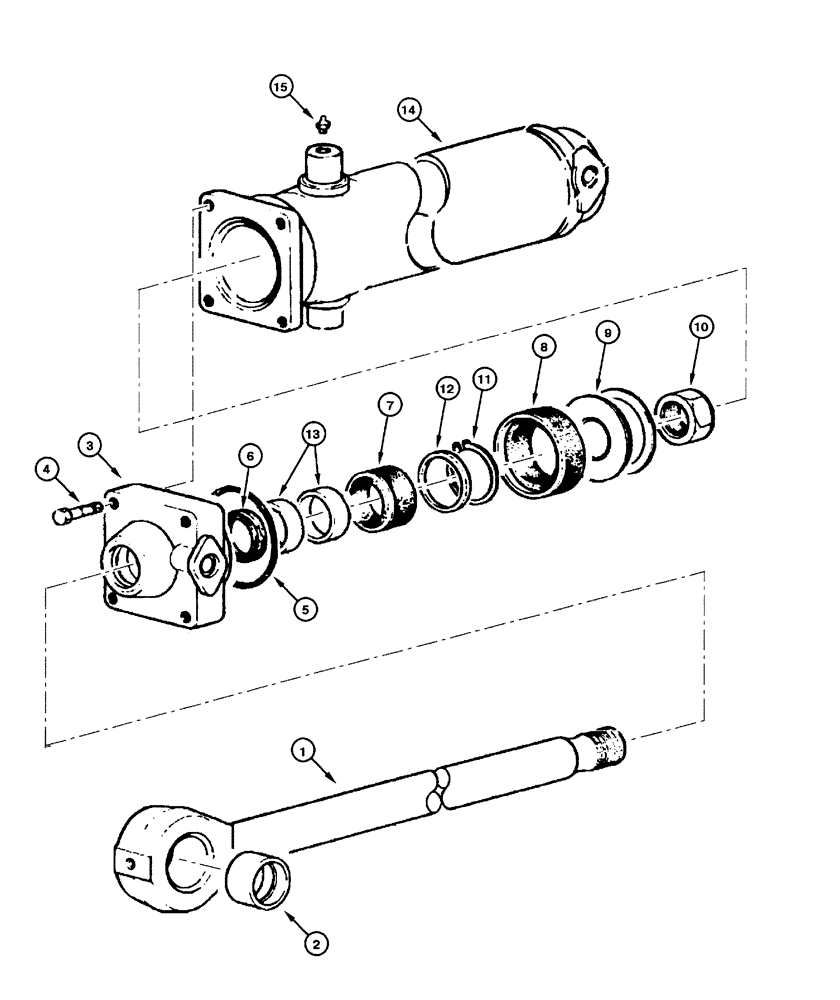

Запчасти Case 885 (08.61[00]) - CYLINDER - RIPPER (08) - HYDRAULICS

75251723

LIFT CYLINDER

RIPPER

1шт.

75251723R

REMAN-HYD CYLINDER

RIPPER

1шт.

75251723C

CORE-HYD CYLINDER

Return Number

1шт.

1

75251727

ROD

1шт.

2

8286948

BUSHING,60.2mm ID x 72mm OD x 65mm L

1шт.

3

8288335

PLATE

1шт.

4

14258530

SCREW,M16 x 1.5 x 65mm

4шт.

5

14466480

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

1шт.

6

8288748

RING,59.96mm ID x 68.6mm OD x 9mm Thk

1шт.

7

8284381

SEAL,60.4mm ID x 75mm OD x 25mm Thk

SEALRING

1шт.

8

8291505

SEAL,85mm ID x 103.1mm OD x 22.4mm Thk

1шт.

9

8290223

PISTON

1шт.

10

8299528

NUT

1шт.

11

11061675

LOCKING RING

1шт.

12

8288726

SHIM,60.8mm ID x 74.8mm OD x 1.5mm Thk

1шт.

13

8288749

GUIDE RING,59.96mm ID x 66mm OD x 12.8mm Thk

1шт.

14

75251724

BARREL

1шт.

15

13407211

LUBE NIPPLE,M10 x 1

2шт.

75288901

SEAL KIT

REPAIR (NOTE)

1шт.
