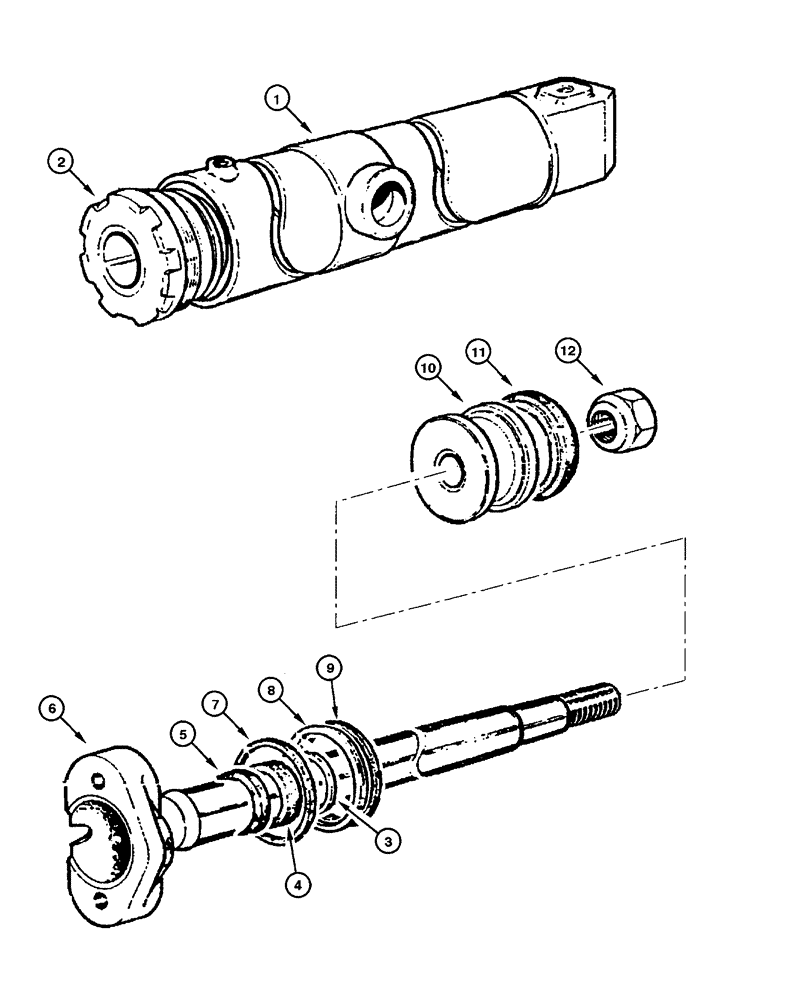

Запчасти Case 885 (08.54[00]) - CYLINDER - BLADE LIFT (08) - HYDRAULICS

75251459

CYLINDER

Lift RH

1шт.

75252455

CYLINDER,Double Acting, 56mm Rod, 1143mm Stroke

Lift LH

1шт.

75252455R

REMAN-HYD CYLINDER

885 MOTOR GRADER ASN 024001

1шт.

75252455C

CORE-HYD CYLINDER

Return Number

1шт.

1

75253166

LINER, ENGINE CYLIND

Cylinder RH

1шт.

1

75253167

LINER, ENGINE CYLIND

Cylinder LH

1шт.

2

75220792

FLANGE

1шт.

3

79021959

RING

1шт.

4

79021958

BRAKE LINING

1шт.

5

79021957

BRAKE LINING

1шт.

6

75251460

ROD

1шт.

7

14465780

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

1шт.

8

8297075

RING,83.8mm ID x 90.21mm OD x 6mm Thk

1шт.

9

14465480

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

1шт.

10

79038228

PISTON

1шт.

11

8291561

PISTON RING,88.31mm Bore, 56mm Rod, 47mm W

1шт.

12

8298615

NUT

1шт.

75220797

SEAL KIT

(NOTE)

1шт.
