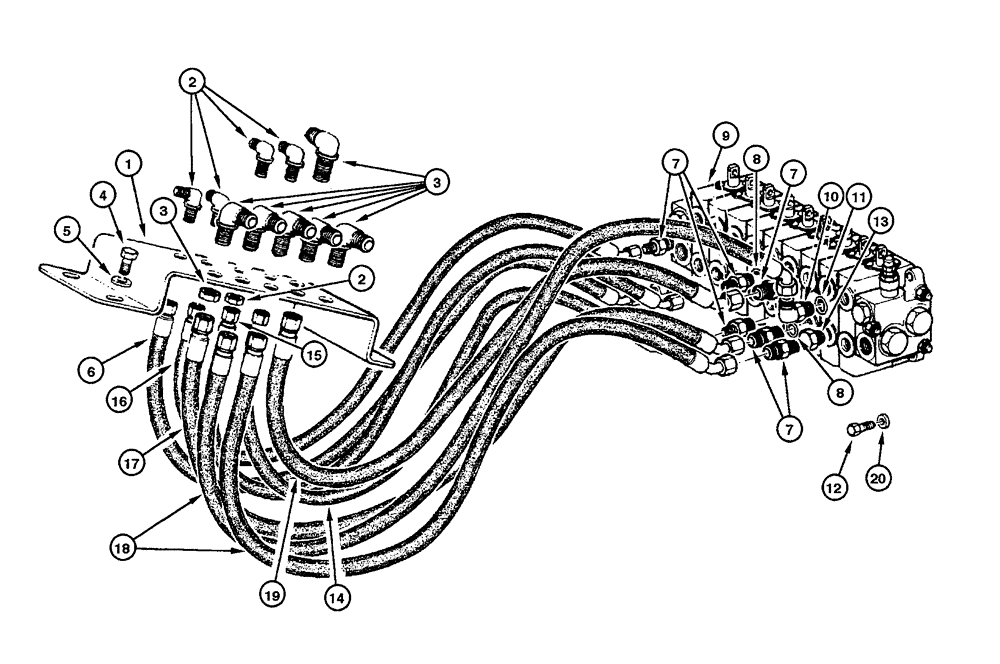

Запчасти Case 885 (08.42[00]) - DISTRIBUTOR - HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

75280667

PLATE

1шт.

2

70927163

HYD CONNECTOR

6шт.

3

70928378

ELBOW

4шт.

4

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

4шт.

5

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

4шт.

6

75251188

FLEXIBLE HOSE

1шт.

7

70922457

HYD CONNECTOR

3шт.

8

70921885

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

73162923

CONTROL VALVE

1шт.

10

70922523

ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

11

70921885

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12

70921565

SCREW

4шт.

13

70919552

CAP

1шт.

14

75252832

FLEXIBLE HOSE

1шт.

15

75251190

FLEXIBLE HOSE

1шт.

16

75251192

FLEXIBLE HOSE

1шт.

17

75251194

FLEXIBLE HOSE

1шт.

18

75252425

FLEXIBLE HOSE

1шт.

19

75251191

FLEXIBLE HOSE

1шт.

20

70630753

WASHER

4шт.
