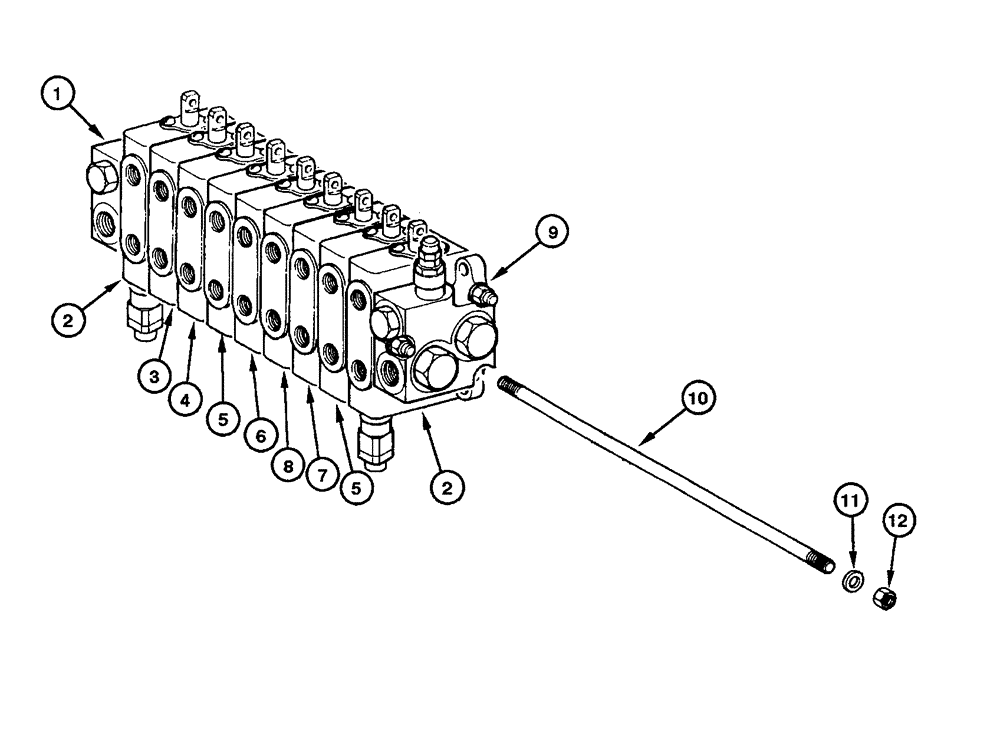

Запчасти Case 885 (08.41[00]) - DISTRIBUTOR - ASSEMBLY (08) - HYDRAULICS

73162923

CONTROL VALVE

Distributor 9s assy.

1шт.

1

75289561

HYDRAULIC VALVE

Outlet

1шт.

2

75289554

HYDRAULIC VALVE

Blade Lift See Figure 08.44

2шт.

3

75289555

HYDRAULIC VALVE

Scarifer See Figure 08.45

1шт.

4

73130105

HYDRAULIC VALVE

Blade Side Shift See Figure 08.47

1шт.

5

75289557

HYDRAULIC VALVE

Blade Tilt See Figure 08.48

2шт.

6

75289558

HYDRAULIC VALVE

Turn-Circle See Figure 08.49

1шт.

7

75289560

HYDRAULIC VALVE

Link See Figure 08.50

1шт.

8

75289559

HYDRAULIC VALVE

Circlre Shift See Figure 08.52

1шт.

9

75289553

HYDRAULIC VALVE

Inlet

1шт.

10

75289562

TIE-ROD

3шт.

11

75289564

WASHER

6шт.

12

75289563

NUT

6шт.
