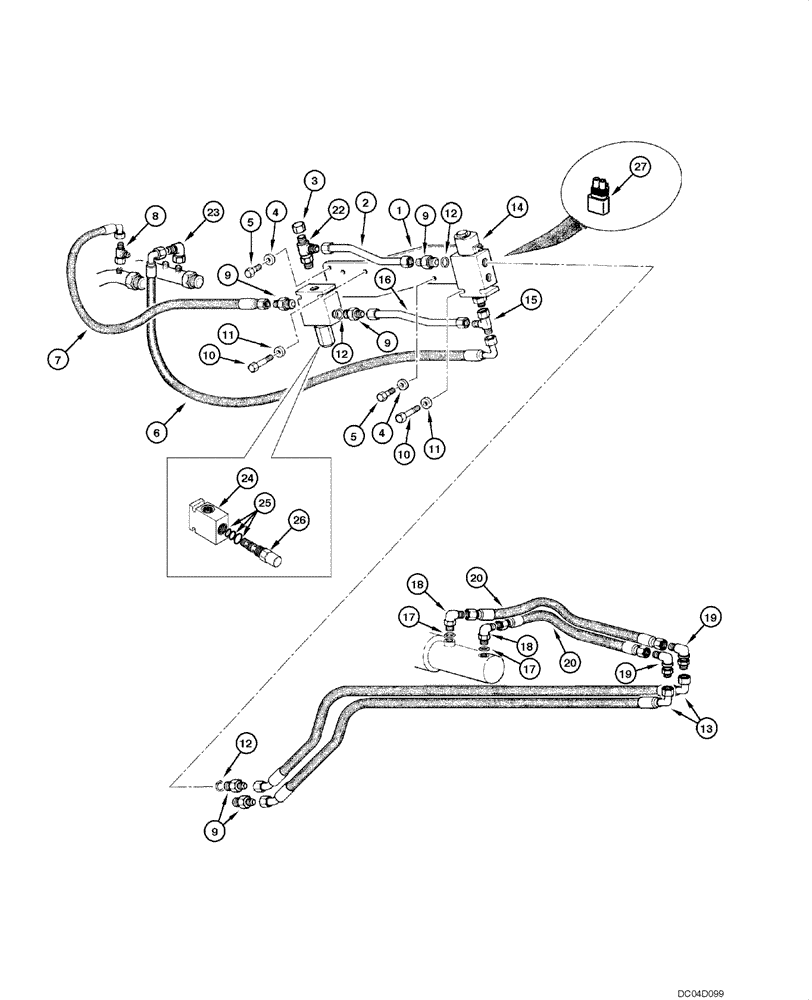

Запчасти Case 885 (08.10[00]) - BLADE HYDRAULIC CIRCUIT - LOCK (3 HOLES) (08) - HYDRAULICS

1

75280725

SUPPORT

1шт.

2

75248917

RIGID TUBE,6.5 mm ID, 9.5 mm OD, 140, 35 mm Length

1шт.

3

70919552

CAP

1шт.

4

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

5

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

2шт.

6

75252434

FLEXIBLE HOSE

1шт.

7

75252433

FLEXIBLE HOSE

1шт.

8

70921297

3 WAY CONNECTION

1шт.

9

70922522

HYD CONNECTOR

4шт.

10

70930238

SCREW

2шт.

11

70928190

WASHER

2шт.

12

70921885

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

13

75252380

FLEXIBLE HOSE

2шт.

14

73124881

HYDRAULIC VALVE

1шт.

15

70921297

3 WAY CONNECTION

1шт.

16

70921013

ELBOW

1шт.

17

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

18

70923905

ELBOW

2шт.

19

70928378

ELBOW

2шт.

20

70659547

HYDRAULIC HOSE

2шт.

22

70925858

HYD CONNECTOR

1шт.

23

75260090

TUBE

1шт.

24

75323837

HYDRAULIC VALVE

1шт.

25

75313876

SEAL KIT

1шт.

26

75313877

HYDRAULIC VALVE

1шт.

27

75322270

ELEC CONNECTOR

VARISTOR

1шт.
