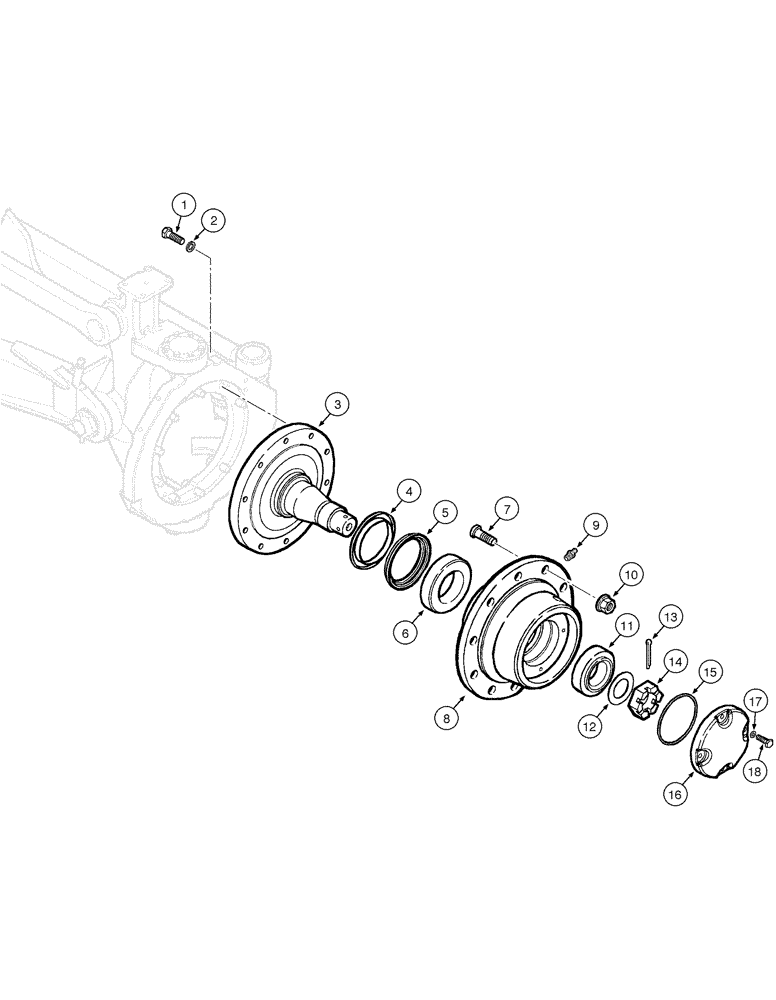

Запчасти Case 865 VHP (06-52[01]) - FRONT AXLE - WHEEL HUB - ASSEMBLY (06) - POWER TRAIN

1

412398

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

18шт.

2

87016618

LOCK WASHER,M16

18шт.

3

87647436

FRONT AXLE

2шт.

4

75325357

SEALING RING COLLAR,117.22mm ID x 149.86mm OD x 1.14mm Thk

2шт.

5

75325358

SEALING RING,117.47mm ID x 152.55mm OD x 21.84mm Thk

2шт.

6

73124684

TAPERED BEARING,90mm ID x 147mm OD x 40mm W

2шт.

7

87625354

SCREW,M22 x 1.5 x 1.5mm, Grade 10.9

20шт.

8

87671571

WHEEL

2шт.

9

13407211

LUBE NIPPLE,M10 x 1

2шт.

10

75250656

WHEEL NUT

20шт.

11

7068817

BEARING ASSY

2шт.

12

70932867

WASHER

2шт.

13

70929956

COTTER PIN

2шт.

14

70922271

NUT

2шт.

15

70923824

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

2шт.

16

75266851

COVER

2шт.

17

70910287

LOCK WASHER

8шт.

18

11106631

SCREW,Hex, M10 x 35mm, Cl 10.9, Full Thd

8шт.
