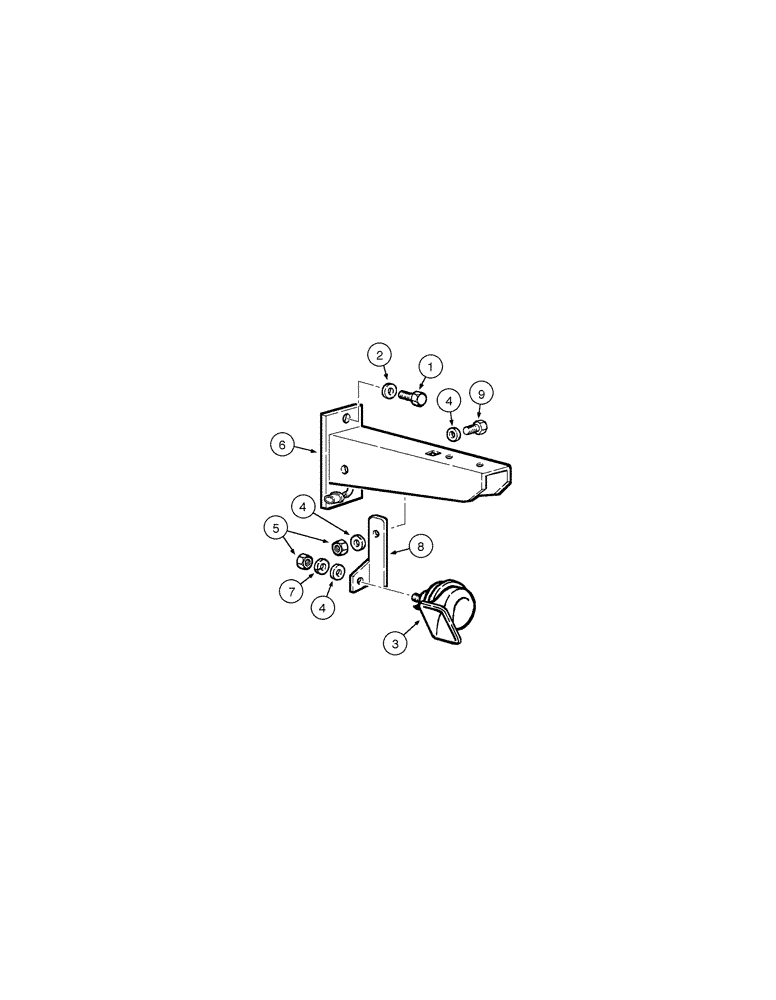

Запчасти Case 865 VHP (04-26[01]) - ELECTRICAL SYSTEM - HORN (04) - ELECTRICAL SYSTEMS

1

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

4шт.

2

10516873

WASHER

4шт.

3

87724783

HORN

1шт.

4

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

5

16100821

NUT,M8, Cl 10

2шт.

6

75267253

SUPPORT

2шт.

7

10516673

WASHER

2шт.

8

84152294

SUPPORT

horn

1шт.

9

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

1шт.
