(04-14[01]) - ELECTRICAL SYSTEM - COMMAND PANEL

Запчасти Case 865 VHP (04-14[01]) - ELECTRICAL SYSTEM - COMMAND PANEL (04) - ELECTRICAL SYSTEMS

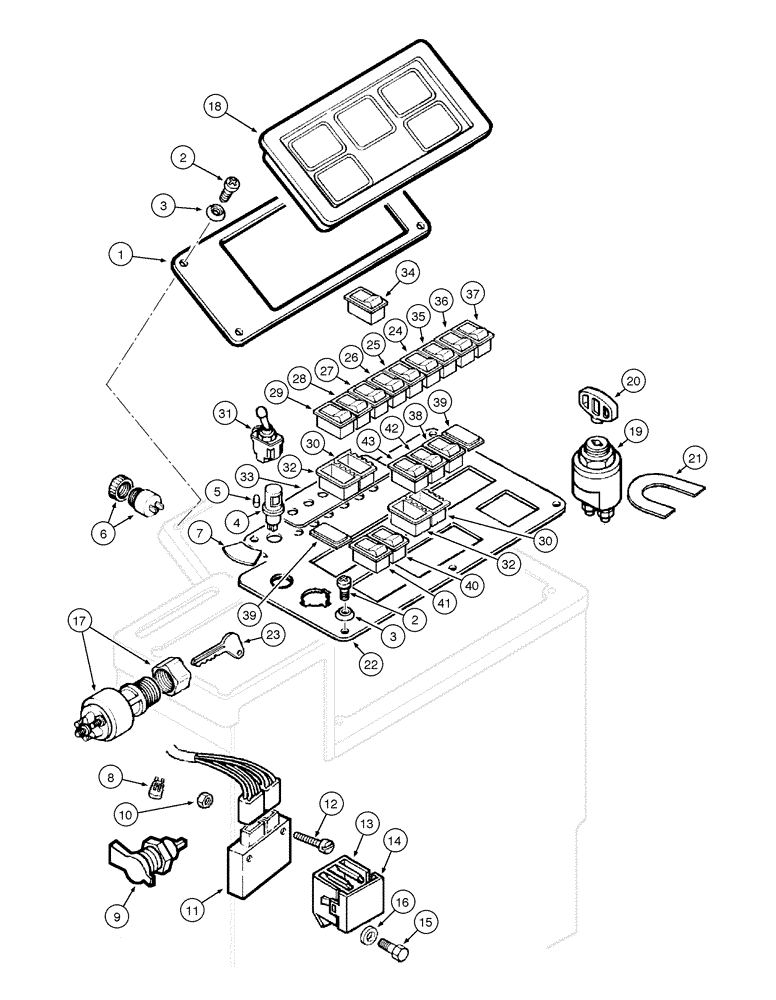

Схема запчастей Case 865 VHP - (04-14[01]) - ELECTRICAL SYSTEM - COMMAND PANEL (04) - ELECTRICAL SYSTEMS
15
3
3
41
39
28
20
10
32
33
25
31
32
37
2
42
1
34
43
24
22
4
13
23
29
16
30
36
12
21
40
19
8
26
6
5
2
18
11
27
30
38
17
39
35
9
14
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87530610

SIDE PANEL

1шт.

2

13313217

SCREW,Pozidriv Oval Hd, Csk, M6 x 20mm, Cl 5.8, Full Thd

10шт.

3

85801991

WASHER,6.3mm OD x 18mm ID x 4mm Thk

10шт.

4

73072041

WARNING LIGHT

panel, Includes item 5

1шт.

5

73072025

BULB

1шт.

6

75241340

HORN

1шт.

7

75324996

DECAL

1шт.

8

75326330

RESISTOR

1шт.

9

79090991

POWER SOCKET

1шт.

10

70917479

NUT

2шт.

11

75283926

DIODE ELEMENT

1шт.

12

76021290

SCREW,#6 - 32 x 1"

2шт.

13

50001484

BRACKET

1шт.

14

5962562

COVER

1шт.

15

10977731

BOLT,Hex, M5 x 14mm, Cl 10.9, Full Thd

1шт.

16

10516473

WASHER

1шт.

17

75225352

NEUTRAL START SWITCH

ignition

1шт.

18

87523135

ELECTRIC PANEL

instruments

1шт.

18

87523135R

REMAN-ELECT MONITOR

865 VHP MOTOR GRADER TIER 3 (NA) ASN N8AF04429 (1/08-)

1шт.

18

87523135C

CORE-MONITOR

Return Number

1шт.

19

79073031

SWITCH

master, Includes item 20

1шт.

20

79073033

IGNITION KEY

1шт.

21

75259379

DECAL

master switch

1шт.

22

87540679

CLAMP

1шт.

For equipment with A/C

1шт.

22

87545948

PANEL

1шт.

For equipment with cab heater

1шт.

22

87545947

PANEL

1шт.

For equipment with open cab

1шт.

23

75267445

IGNITION KEY

1шт.

24

75251075

WINDSHIELD WIPER SWI

front

1шт.

25

87366086

ROCKER SWITCH

fan drive

1шт.

26

75327014

SWITCH

1шт.

27

75326429

SWITCH

increment/decrement

1шт.

28

75326427

SWITCH

engine diag

1шт.

29

75251070

LIGHT SWITCH

limp-home

1шт.

30

75251093

CONNECTING BLOCK

contact

6шт.

31

73125891

ASSEMBLY

saddle lock

5шт.

32

85803983

CONTACT HOUSING

8шт.

33

75322188

DECAL

1шт.

34

75253173

SWITCH

1шт.

35

75251052

WINDSHIELD WASHER SW

windshield front washer

1шт.

36

75253176

WINDSHIELD WIPER SWI

windshield rear wiper

1шт.

37

75253177

WINDSHIELD WASHER SW

windshield rear washer

1шт.

38

75251045

LIGHT SWITCH

cab floodlight

1шт.

39

5151033

PLASTIC PLUG

8шт.

40

75321686

SWITCH

air recirculation

1шт.

41

75321122

SWITCH

A/C

1шт.

42

75251067

LIGHT SWITCH

rear floodlight

1шт.

43

75251081

LIGHT SWITCH

floodlight

1шт.
