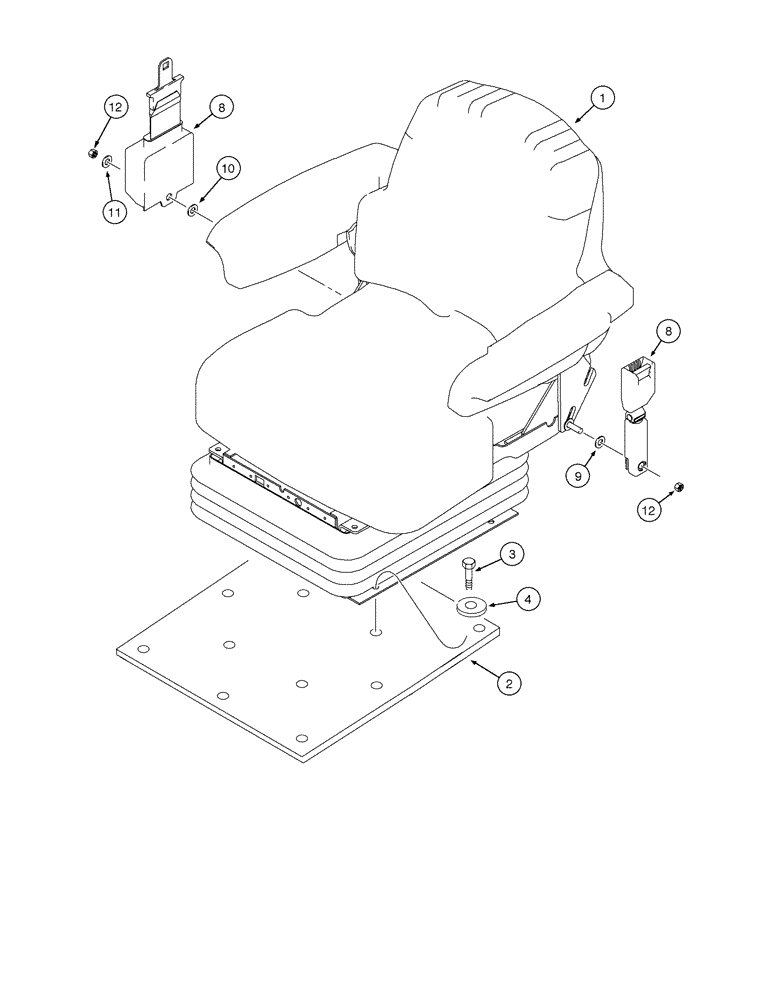

Запчасти Case 865 VHP (09-108[01]) - SEAT - MOUNTING (09) - CHASSIS

1

399257A1

DRIVER SEAT

Assy Fabric

1шт.

Page 09-110

1шт.

1

399259A1

DRIVER SEAT

Assy Suspension

1шт.

Page 09-118

1шт.

1

399261A1

DRIVER SEAT

Assy Vinyl

1шт.

2

87539163

COVER

upper

1шт.

3

16043631

SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd

4шт.

4

12642021

WASHER

4шт.

8

249116A1

SAFETY BELT ,50.80 mm W

Includes items 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER

1шт.

11

495-11047

WASHER,7/16", SAE

1шт.

12

231-2447

LOCK NUT,7/16"-14, GB

2шт.

8

249117A1

SAFETY BELT ,76.20 mm W

Includes items 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER

1шт.

11

495-11047

WASHER,7/16", SAE

1шт.

12

231-2447

LOCK NUT,7/16"-14, GB

2шт.
