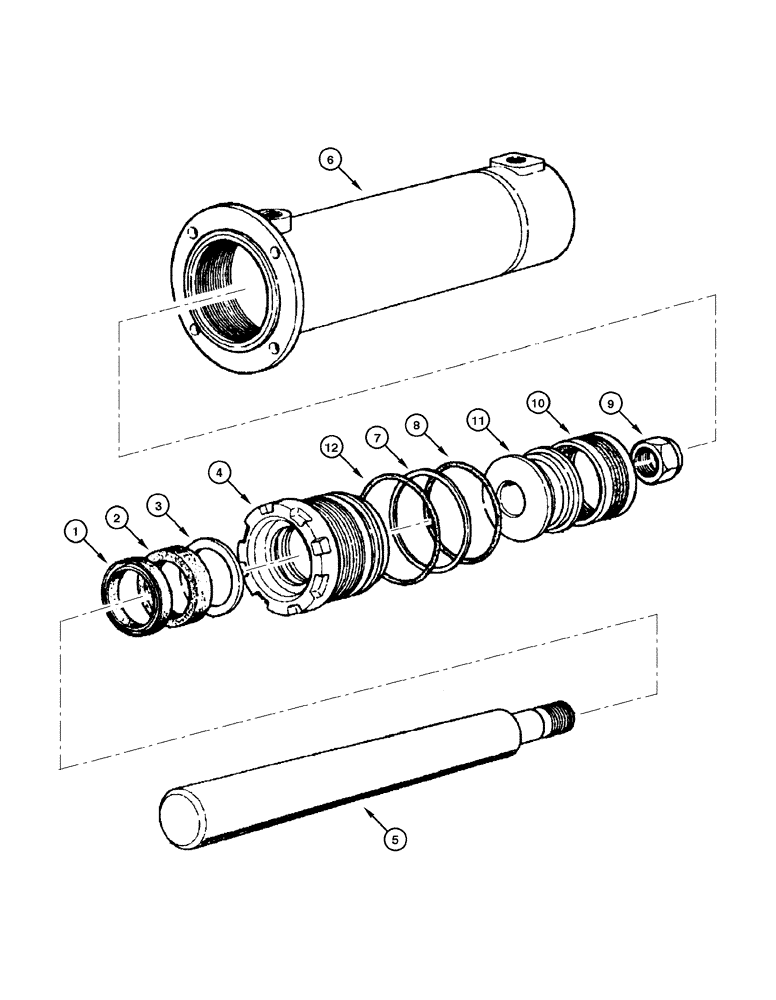

Запчасти Case 865 VHP (08-120[01]) - CYLINDER - SADDLE LOCK (08) - HYDRAULICS

75267018

CYLINDER

saddle lock Assy, Includes items 1 - 12

1шт.

1

8288832

O-RING

1шт.

2

8297073

BRAKE LINING

1шт.

3

8297074

RING

seal

1шт.

4

75218748

BASE PLATE

1шт.

5

75250239

ROD,50mm OD x 370mm L

1шт.

6

75250241

CYLINDER,80mm Bore Dia

1шт.

7

8297295

RING,73.8mm ID x 80mm OD x 1.5mm Thk

anti-extrusion

1шт.

8

14465180

O-RING,72.62mm ID x 3.53mm Width

1шт.

9

8281325

NUT

1шт.

10

8291506

SEALING RING

SEALRING

1шт.

11

79038730

PISTON

1шт.

12

14465480

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

1шт.

75288869

SEAL KIT

repair

1шт.

Kit includes items 2, 3, 4, 6, 7, 10

1шт.
