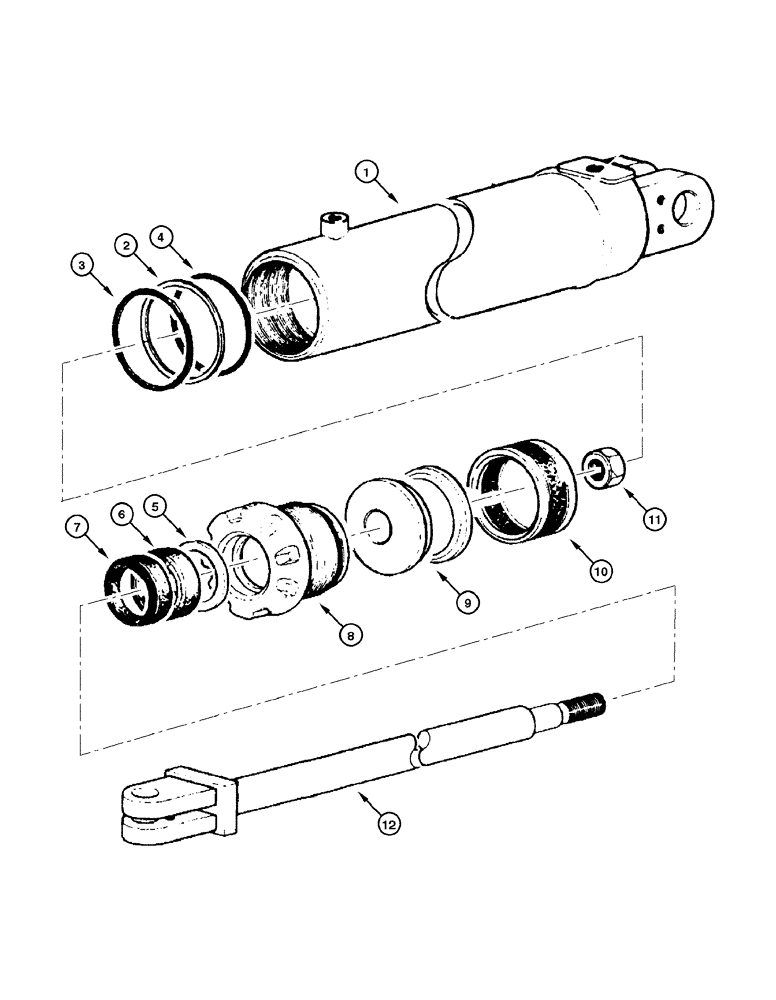

Запчасти Case 865 VHP (08-118[01]) - CYLINDER - BLADE SIDE SHIFT (08) - HYDRAULICS

75267316

CYLINDER

blade side shift Assy, Includes items 1 - 12

1шт.

75250020R

REMAN-HYD CYLINDER

865 VHP MOTOR GRADER TIER 3 (NA) - ASN N8AF04429, blade side shift Assy (1/08-), Reman for New PN 75267316

1шт.

75250020C

CORE-HYD CYLINDER

Return Number

1шт.

1

75250023

CYLINDER,80mm Bore Dia

1шт.

2

8297295

RING,73.8mm ID x 80mm OD x 1.5mm Thk

anti-extrusion

1шт.

3

14465480

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

1шт.

4

14465180

O-RING,72.62mm ID x 3.53mm Width

1шт.

5

8297074

RING

seal

1шт.

6

8297073

BRAKE LINING

1шт.

7

8288832

O-RING

1шт.

8

75218748

BASE PLATE

1шт.

9

79038730

PISTON

1шт.

10

8291506

SEALING RING

SEALRING

1шт.

11

8281325

NUT

1шт.

12

75250021

ROD,50mm OD x 1495mm L

1шт.

75288868

SEAL KIT

repair; Includes 3, 4, 5, 7

1шт.
