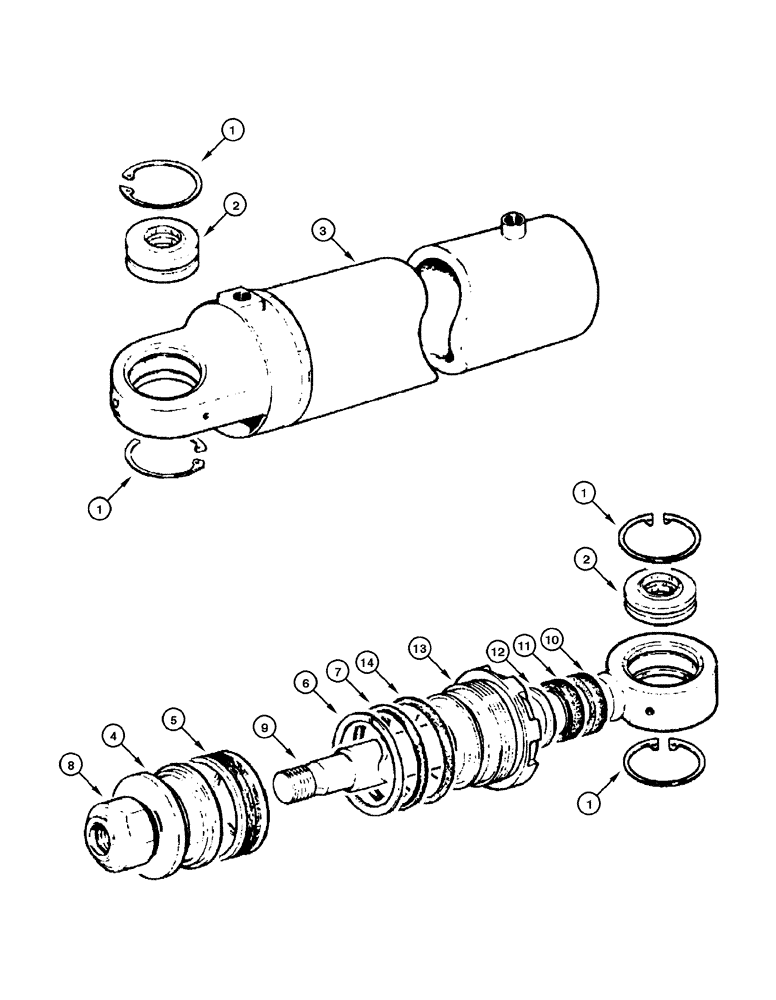

Запчасти Case 865 VHP (08-114[01]) - CYLINDER - BLADE TILT (08) - HYDRAULICS

75267319

CYLINDER

blade tilt Assy, Includes items 1 - 14

1шт.

75250031R

REMAN-HYD CYLINDER

Blade tilt

1шт.

75250031C

CORE-HYD CYLINDER

Return Number

1шт.

1

11061076

SNAP RING,M62, Int

lock

4шт.

2

70928851

BEARING ASSY

2шт.

3

75250032

CYLINDER,80mm Bore Dia

1шт.

4

79038730

PISTON

1шт.

5

8291506

SEALING RING

SEALRING

1шт.

6

14465180

O-RING,72.62mm ID x 3.53mm Width

1шт.

7

8297295

RING,73.8mm ID x 80mm OD x 1.5mm Thk

anti-extrusion

1шт.

8

8281325

NUT

1шт.

9

75250035

ROD,45mm OD x 393mm L

1шт.

10

8288822

SEAL

1шт.

11

8297294

GASKET

1шт.

12

8297296

RING

seal

1шт.

13

75220934

BASE PLATE

1шт.

14

14465480

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

1шт.

75288870

SEAL KIT

repair

1шт.

Kit includes items 3, 4, 5, 7, 8, 9, 11

1шт.
