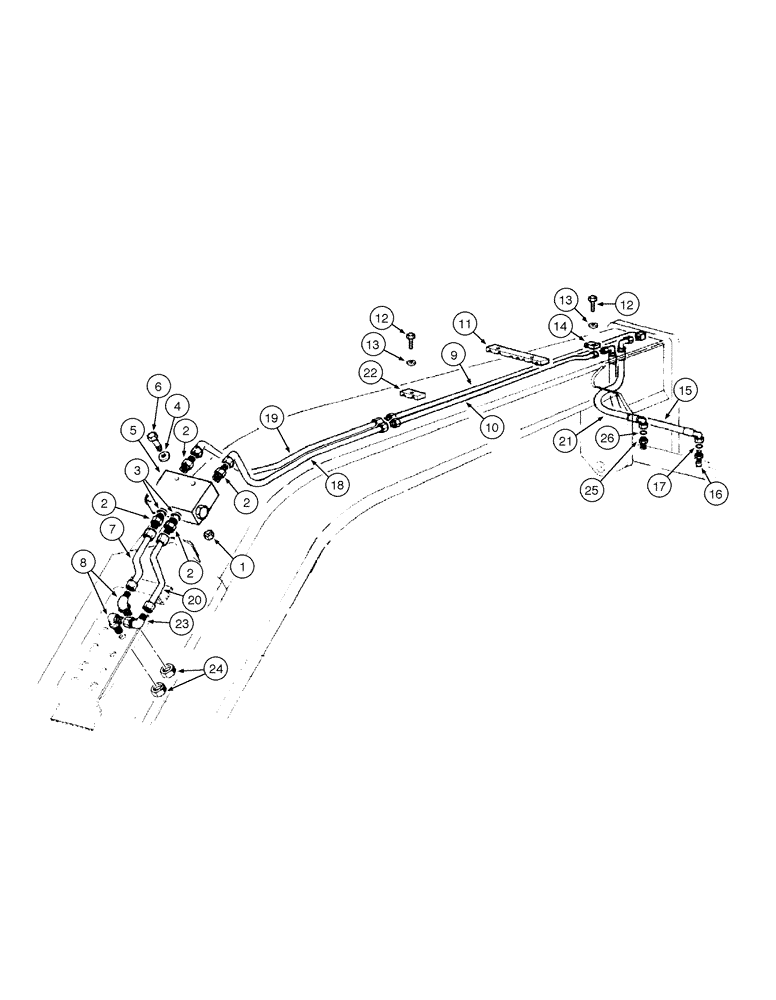

Запчасти Case 865 VHP (08-046[01]) - FRONT AXLE HYDRAULIC CIRCUIT - TILT (08) - HYDRAULICS

1

70920329

NUT

2шт.

2

70922457

HYD CONNECTOR

Includes item 3

4шт.

3

70921885

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

4

70900816

WASHER

4шт.

5

REF

INSTRUCTION

VALVE retainer Assy

1шт.

Page 08-142

1шт.

6

70930238

SCREW

2шт.

7

75253452

TUBE,6.5 mm ID, 9.5 mm OD, 164, 37 mm Length

1шт.

8

218-693

ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

2шт.

9

75248925

RIGID TUBE,9.5 mm OD, 2618, 40 mm Length

1шт.

10

75248921

RIGID TUBE,9.5 mm OD, 2529, 29 mm Length

1шт.

11

75250315

CLAMP

1шт.

12

16044331

SCREW,Hex, M8 x 1.25 x 55mm, Cl 10.9

1шт.

13

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

14

73127629

CLAMP

1шт.

15

87712860

FLEXIBLE HOSE

1шт.

16

86579678

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5 ORB

Includes item 17

2шт.

17

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

18

75248994

RIGID TUBE

1шт.

19

75248924

RIGID TUBE

1шт.

20

75253451

TUBE

1шт.

21

87712861

FLEXIBLE HOSE

1шт.

22

70695523

CLAMP

1шт.

23

70921013

ELBOW

1шт.

24

218-1254

LOCK NUT,Blkhd, 9/16"-18

2шт.

25

87715111

PLUG

Includes item 26

2шт.

26

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.
