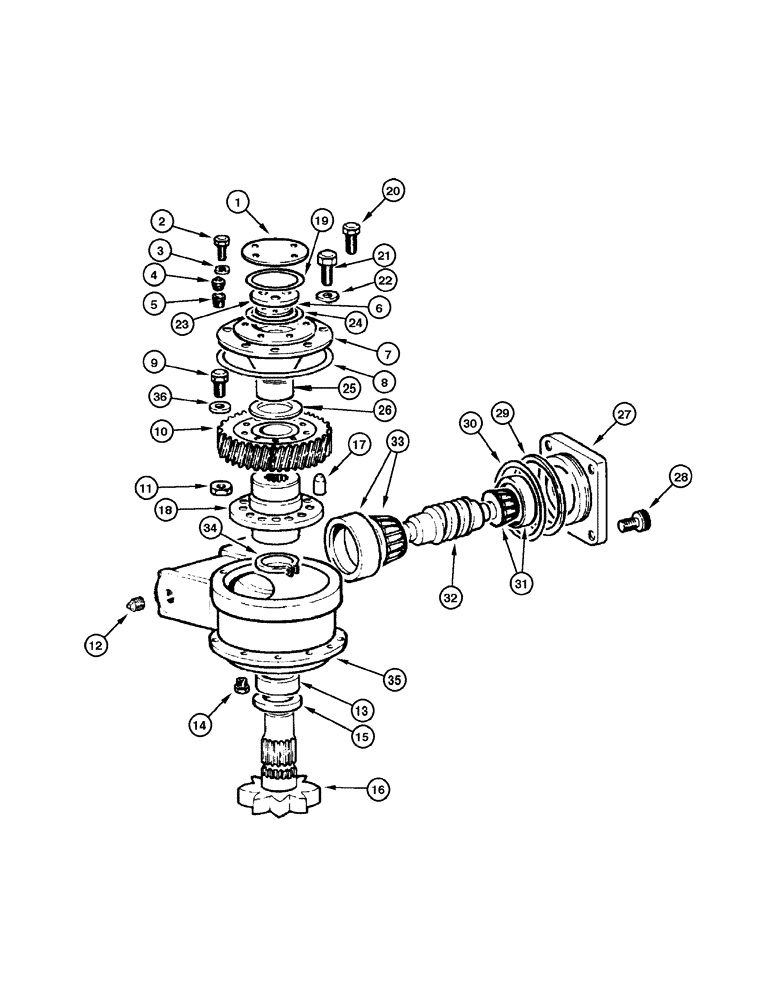

Запчасти Case 865 VHP (08-042[01]) - CIRCLE HYDRAULIC CIRCUIT - TURN-CIRCLE REDUCER (08) - HYDRAULICS

75267470

BOX

turn-circle Assy, Includes items 1 - 36

1шт.

75267470R

REMAN-REDUCTION UNIT

Turn-Circle

1шт.

75267470C

CORE-REDUCTION UNIT

Return Number

1шт.

1

75267126

COVER

1шт.

2

70921076

SCREW,3/8"-16 x 1 1/4"

3шт.

3

70929156

WASHER,0.41" ID x 0.81" OD x 0.06" Thk

3шт.

4

70916619

HYD CONNECTOR,1/8" NPT

1шт.

5

70901838

REDUCER

1шт.

6

73125519

SHIM,.010" Thk

3шт.

6

73125520

SHIM,.005" Thk

6шт.

6

73125521

SHIM,.003" Thk

2шт.

7

75267133

COVER

1шт.

8

14468881

O-RING,228.2mm ID x 9.262" OD x 3.53mm

1шт.

9

70922744

SCREW

10шт.

10

75258894

GEAR

1шт.

11

70911030

NUT

10шт.

12

70901652

PLUG

1шт.

13

73130969

BUSHING,69.95mm ID x 79.46mm OD x 56.64mm L

1шт.

14

70920416

PLUG

drain

1шт.

15

70634037

SEAL,73.03mm ID x 95.4mm OD x 11mm Thk

1шт.

16

73125501

SHAFT

1шт.

17

73129961

DOWEL

center

1шт.

18

73130013

HUB

1шт.

19

70923817

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

1шт.

20

70922300

SCREW

4шт.

21

70920574

SCREW

6шт.

22

70912441

LOCK WASHER

6шт.

23

73125500

COVER

1шт.

24

73125494

THRUST WASHER,60.33mm ID x 92.08mm OD x 2.44mm Thk

1шт.

25

73160841

BUSHING,60.47mm ID x 69.91mm OD x 47.88mm L

1шт.

26

73125494

THRUST WASHER,60.33mm ID x 92.08mm OD x 2.44mm Thk

2шт.

27

75267138

PLATE

1шт.

28

70922065

SCREW

4шт.

29

75240816

SHIM,0.15mm Thk

3шт.

29

75240817

SHIM,133.4mm ID x 146mm OD x 0.2mm Thk

3шт.

29

75240818

SHIM,0.25mm Thk

3шт.

30

70923590

O-RING,0.139" Thk x 4.734" ID, -248, Cl 5, 75 Duro

1шт.

31

73124983

TAPERED BEARING,44.45mm ID x 95.25mm OD x 30.96mm W

1шт.

32

75215793

SHAFT W/WORM SCREW

1шт.

33

73124983

TAPERED BEARING,44.45mm ID x 95.25mm OD x 30.96mm W

1шт.

34

70622212

SNAP RING

1шт.

35

75267144

HOUSING

1шт.

36

70928914

WASHER

10шт.
