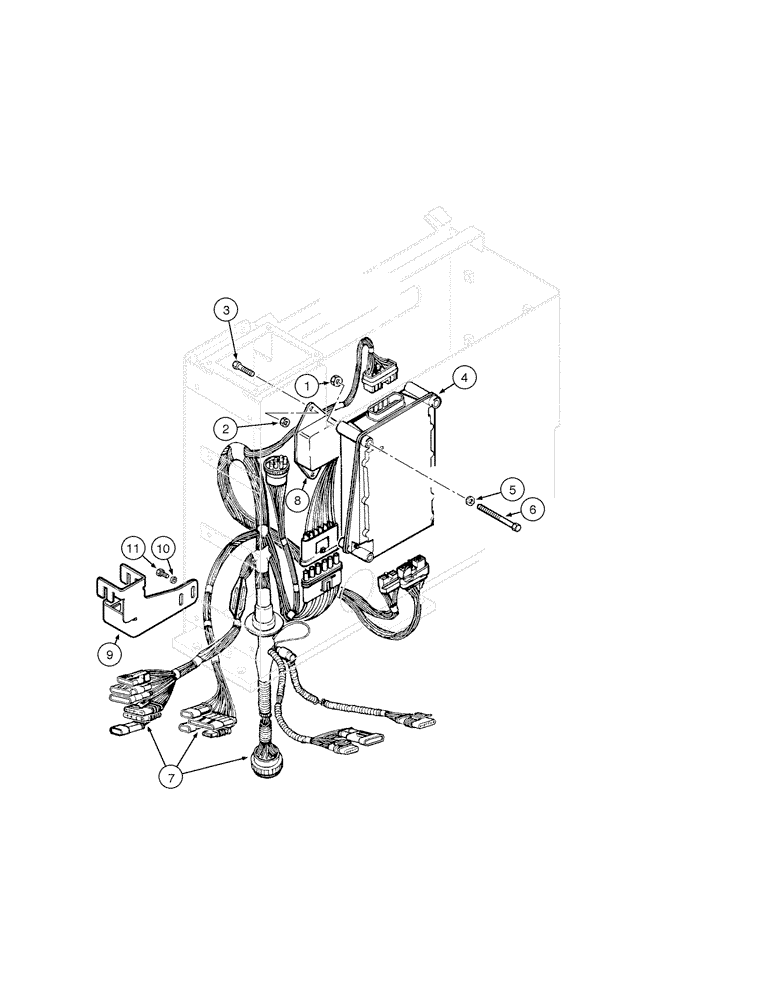

Запчасти Case 865 VHP (04-18[01]) - ELECTRICAL SYSTEM - ELECTRONIC CONTROL UNIT (04) - ELECTRICAL SYSTEMS

1

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

4шт.

2

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

3

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

2шт.

4

73162491

CONTROL VALVE

1шт.

5

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

6шт.

6

10903931

BOLT

4шт.

7

75326325

WIRE

transmission

1шт.

8

73162492

CONTROL

1шт.

9

75324944

SUPPORT

1шт.

10

12644421

WASHER,6.15mm ID x 15mm OD x 1mm Thk

2шт.

11

10902131

SCREW,Hex, M6 x 14mm, Cl 10.9, Full Thd

2шт.

12

10977731

BOLT,Hex, M5 x 14mm, Cl 10.9, Full Thd

2шт.

13

87335022

HARNESS

electric

1шт.

14

87535385

SUPPORT

1шт.
