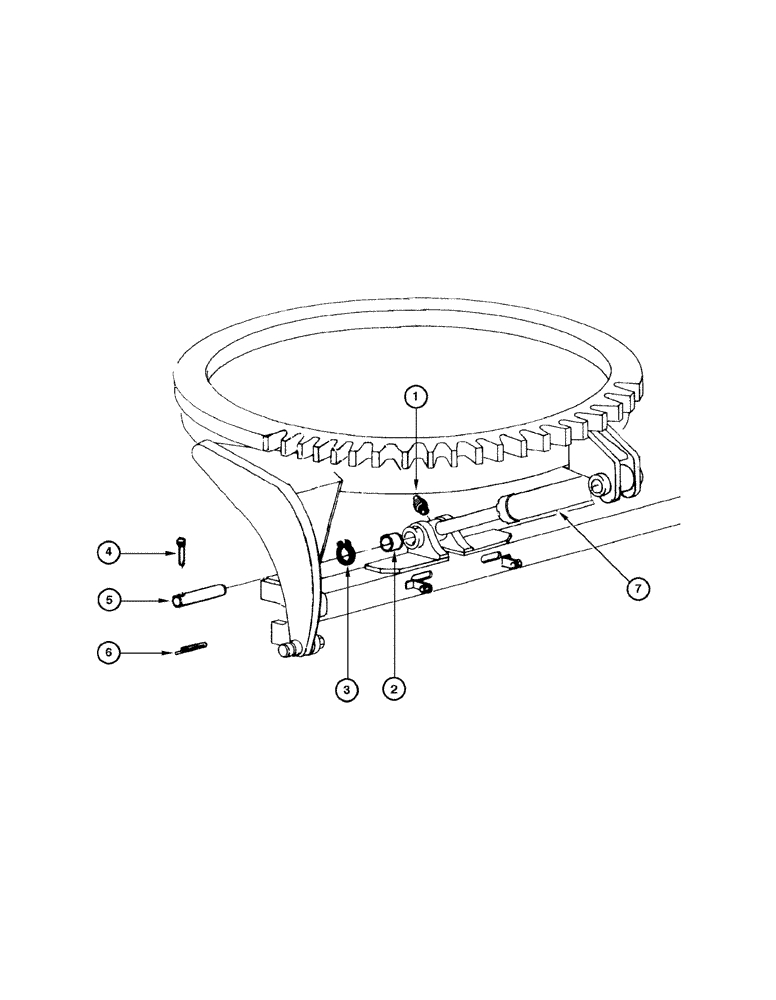

Запчасти Case 865 VHP (09-030[01]) - BLADE - TILT MECHANISM (09) - CHASSIS

1

70914465

LUBE NIPPLE

2шт.

2

70928851

BEARING ASSY

2шт.

3

11061076

SNAP RING,M62, Int

lock

4шт.

4

75213766

PIN,10.71mm OD x 88mm L

2шт.

5

75213765

PIN,38.08mm OD x 181mm L

2шт.

6

70900805

COTTER PIN,1/8" x 3/4"

2шт.

7

REF

INSTRUCTION

CYLINDER blade tilt

1шт.

Page 08-116

1шт.
