Запчасти Case 865 VHP (09-004[01]) - REAR CHASSIS (09) - CHASSIS

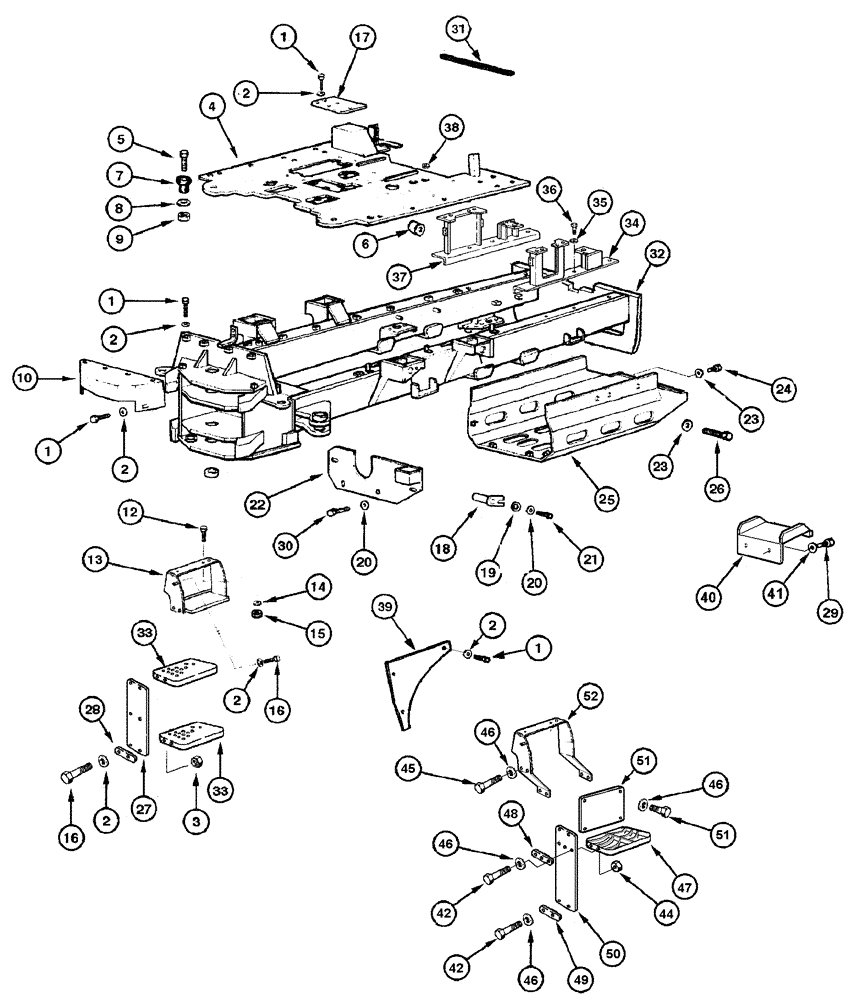

Схема запчастей Case 865 VHP - (09-004[01]) - REAR CHASSIS (09) - CHASSIS
20
32
3
10
40
34
29
35
16
3
22
17
1
37
42
15
51
52
26
18
5
2
46
24
51
21
19
6
30
16
28
31
36
4
41
46
2
1
27
42
24
29
23
16
50
2
38
2
23
9
2
2
39
7
46
44
47
8
2
33
1
13
45
1
14
27
46
25
49
33
48
33
12
20

Артикул

Название

Примечание

Количество

1

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

29шт.

2

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

29шт.

3

16100821

NUT,M8, Cl 10

16шт.

4

87357835

FLOOR

1шт.

5

15981531

BOLT,Hex, M16 x 1.5 x 90mm, Cl 10.9

2шт.

6

70684837

BUSHING,31.72mm ID x 63.75mm OD x 85.85mm L

4шт.

7

76022229

INSULATOR BLOCK

2шт.

8

75254313

WASHER,16.5mm ID x 58mm OD x 4.76mm Thk

2шт.

9

15504021

NUT,M16 x 1.5

2шт.

10

75320230

GUARD

1шт.

11

75213759

BUSHING,66.84mm ID x 79.38mm OD x 25.4mm L

steel

3шт.

12

15224031

BOLT,Hex, M20 x 65mm, Cl 10.9, Full Thd

4шт.

13

87351034

LADDER

RH

1шт.

13

87351103

LADDER

LH

1шт.

14

14497131

WASHER,21mm ID x 37mm OD x 3mm Thk

20шт.

15

12577721

NUT,M20 x 2.5, Cl 10

20шт.

16

16044031

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

16шт.

17

75249861

COVER

1шт.

18

75248739

PIN,31.62mm OD x 171mm L

4шт.

19

10516871

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

4шт.

20

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

21

11112631

BOLT,Hex, M12 x 35mm, Cl 10.9

4шт.

22

75267205

PLATE

1шт.

23

10520001

WASHER,12.2mm ID x 22mm OD x 3mm Thk

12шт.

24

11113031

SCREW,Hex, M12 x 45mm, Cl 10.9, Full Thd

4шт.

25

87547592

GUARD

1шт.

26

11112631

BOLT,Hex, M12 x 35mm, Cl 10.9

6шт.

27

75324582

PLATE

4шт.

28

75267263

PLATE

12шт.

29

11106031

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

8шт.

30

11106431

SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

31

71100431

KIT DEPOT ASSEMBLING

1шт.

32

87542651

FRAME

rear

1шт.

33

75267266

LADDER

lower

4шт.

34

75323328

SUPPORT

1шт.

35

70677010

WASHER,16.67mm ID x 38.1mm OD x 7.94mm Thk

6шт.

36

14258430

BOLT,Hex, M16 x 1.5 x 60mm

6шт.

37

75324392

SUPPORT

1шт.

38

75321577

GROMMET,15.5mm ID x 36.5mm OD x 19mm Thk

2шт.

39

87351162

PLATE

side panel RH

1шт.

39

87351145

COVER

side panel LH

1шт.

40

75266724

LADDER

2шт.

41

10516871

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

4шт.

42

11106631

SCREW,Hex, M10 x 35mm, Cl 10.9, Full Thd

, Start Serial: N9AF04594

36шт.

43

10979321

BOLT,Hex, M10 x 14mm, Cl 8.8, Full Thd

, Start Serial: N9AF04594

8шт.

44

11701721

NUT,M10, Cl 10

, Start Serial: N9AF04594

40шт.

45

11106121

BOLT,Hex, M10 x 1.5 x 22mm, Cl 8.8, Full Thd

, Start Serial: N9AF04594

8шт.

46

12646821

WASHER,10.2mm ID x 25mm OD x 2mm Thk

, Start Serial: N9AF04594

48шт.

47

87434472

STEP

, Start Serial: N9AF04594

6шт.

48

84153139

MOUNTING PLATE

, Start Serial: N9AF04594

16шт.

49

84153143

MOUNTING PLATE

, Start Serial: N9AF04594

4шт.

50

84152365

RUBBER BAND

, Start Serial: N9AF04594

4шт.

51

84155959

MOUNTING PLATE

, Start Serial: N9AF04594

2шт.

52

84155965

LADDER

LH, Start Serial: N9AF04594

1шт.

52

84155977

LADDER

RH

1шт.

Выбрано товаров: 55
