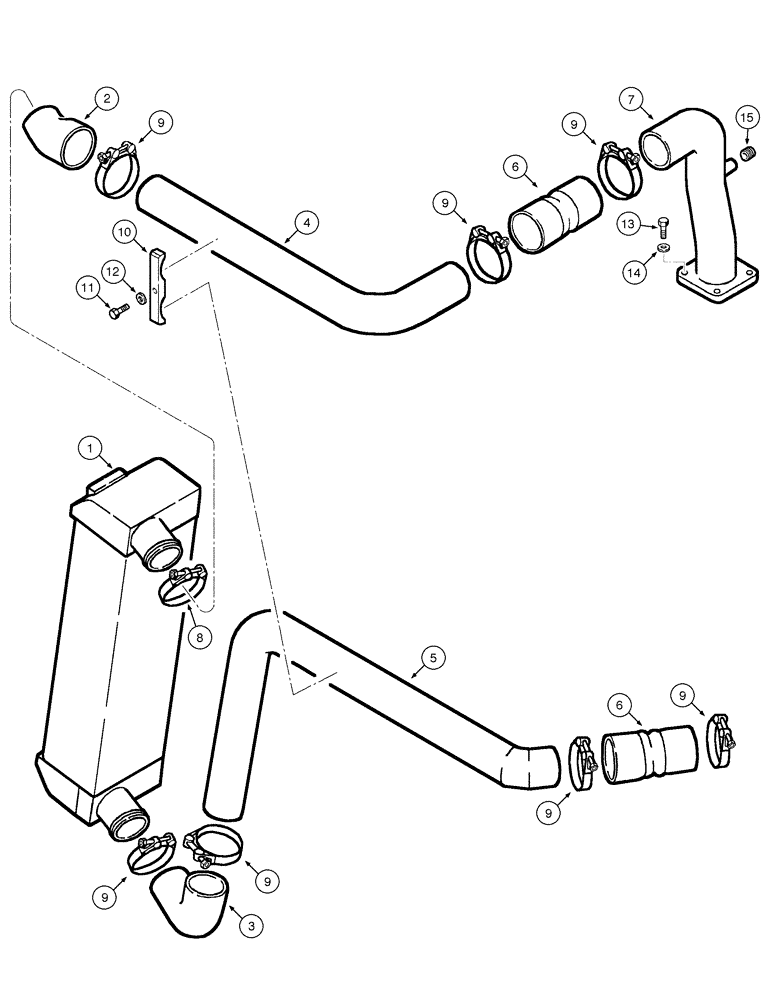

Запчасти Case 865 VHP (02-12[01]) - COOLING SYSTEM - AFTERCOOLER (02) - ENGINE

1

73164347

COOLER ASSY.

1шт.

2

75322711

HOSE,76.20 mm ID, 88.90 mm ID

Flexible

1шт.

3

75324809

HOSE,76.20 mm ID x 125.00 mm

1шт.

4

75324737

PIPE

1шт.

5

87516295

TUBE,76 - 88.9 mm OD x 822, 763 mm L

1шт.

6

8501051

AIR HOSE,76.20 mm ID x 140.00 mm

2шт.

7

87516296

TUBE,35 mm DIA

4шт.

8

L116820

CLAMP,82.55mm - 104.78mm

1шт.

9

L115549

CLAMP,69.85mm - 92.08mm

8шт.

10

87637943

COLLAR

1шт.

11

14359531

SCREW,M8 x 1.25 x 80mm

1шт.

12

10516673

WASHER

1шт.

13

16043931

SCREW,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

4шт.

14

12646821

WASHER,10.2mm ID x 25mm OD x 2mm Thk

4шт.

15

70919134

PLUG

1шт.
