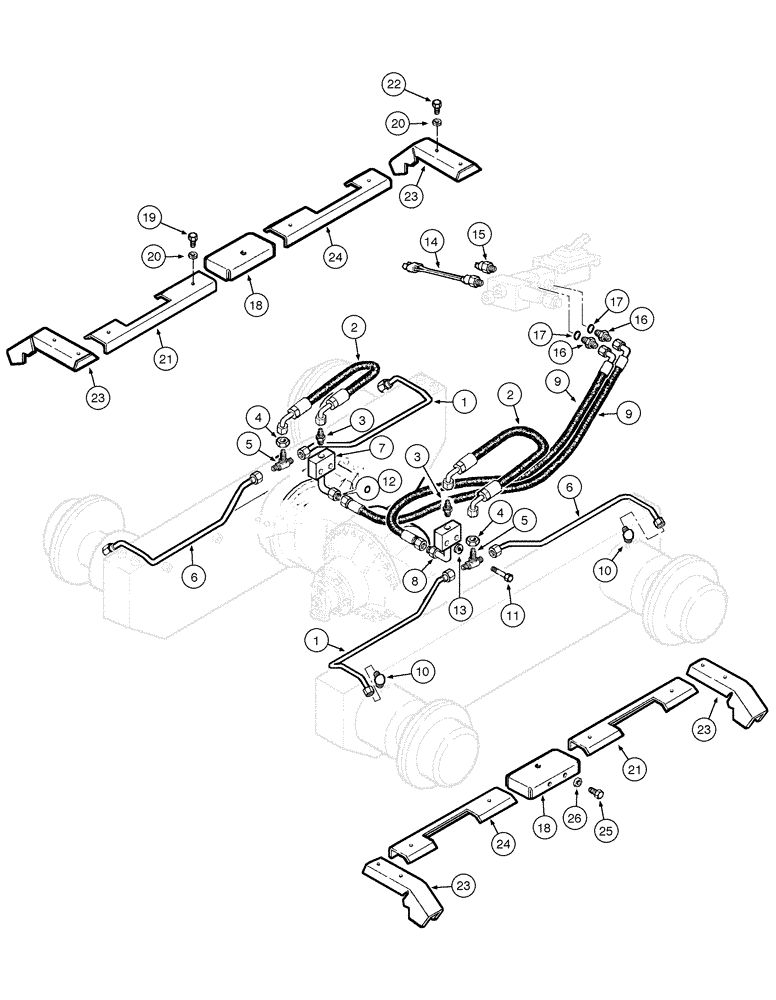

Запчасти Case 865 VHP (07-16[01]) - SERVICE BRAKE HYDRAULIC SYSTEM (07) - BRAKES

1

87625397

RIGID TUBE

2шт.

2

87649111

FLEXIBLE HOSE

2шт.

3

86579671

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORB

2шт.

4

87010704

BHD LOCK NUT,11/16"-16

2шт.

5

87306678

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 ORFS

2шт.

6

87625399

RIGID TUBE,.375" OD

2шт.

7

87648700

BLOCK

1шт.

8

87648632

RIGID TUBE,9 mm ID x 12 mm OD x 169, 110 mm L

1шт.

9

75241267

FLEXIBLE HOSE

2шт.

10

87562344

ELBOW

4шт.

11

86624978

BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd

4шт.

12

70923841

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

13

10516871

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

4шт.

14

75254572

SWITCH

1шт.

15

70094334

LIGHT SWITCH

1шт.

15

70094334

LIGHT SWITCH

, Start Serial: N9AF04604

1шт.

16

75239803

LUBE NIPPLE

2шт.

17

14437785

O-RING,11.3mm ID x 2.4mm

2шт.

18

87632236

PLATE

2шт.

19

16043431

SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

16шт.

20

10519621

WASHER,8.15mm ID x 17mm OD x 2mm Thk

16шт.

21

87632231

PLATE

2шт.

22

16043031

BOLT,Hex, M8 x 12mm, Cl 10.9, Full Thd

8шт.

23

87625404

PROTECTION

4шт.

24

87631036

PLATE

2шт.

25

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

4шт.

26

10516871

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

4шт.
