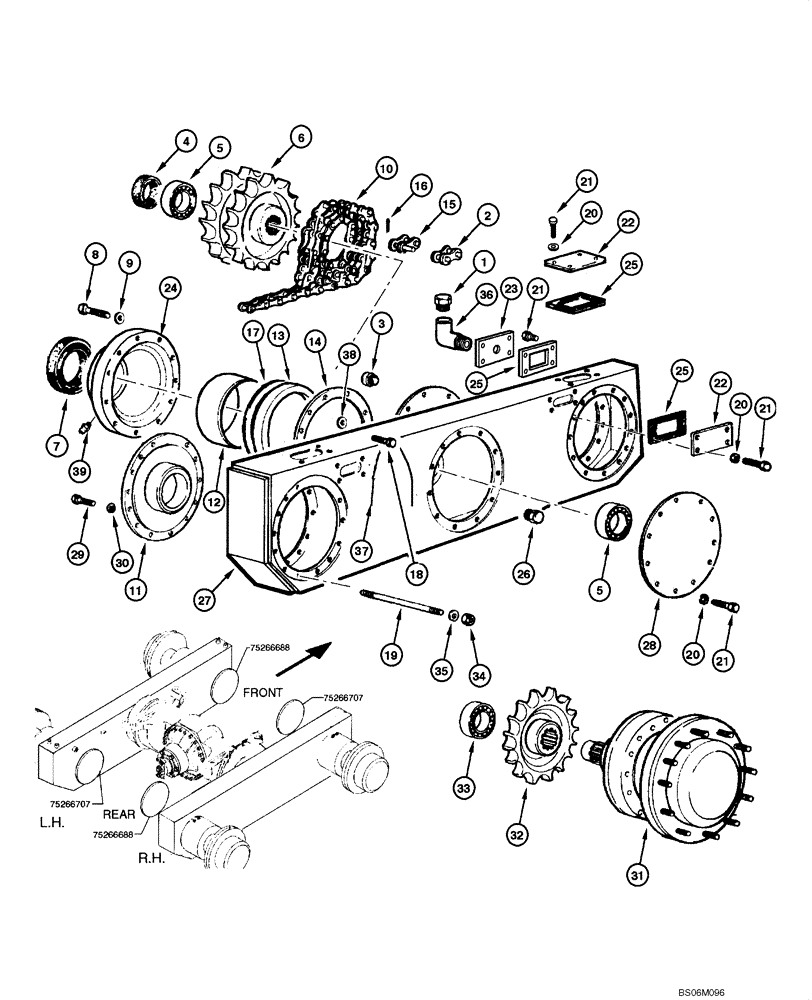

Запчасти Case 865 VHP (06.39[00]) - REAR AXLE DANA - TANDEM (06) - POWER TRAIN

1

70634161

BREATHER

2шт.

2

73161845

LINK,Chain, 31.75mm Pitch

1шт.

3

70901651

PLUG

2шт.

4

73161790

OIL SEAL,52mm ID x 80.3mm OD x 10mm Thk

2шт.

5

26794670

BALL BEARING,65mm ID x 120mm OD x 23mm W

4шт.

6

75321993

GEAR

2шт.

7

73155118

SEAL

2шт.

8

15981231

BOLT,Hex, M16 x 1.5 x 65mm, Cl 10.9

48шт.

9

10517271

LOCK WASHER,16.2mm ID x 27.7mm OD x 4mm Thk

48шт.

10

73161843

CHAIN,Roller, 74 Links x 31.75mm = 2349.5mm

2шт.

11

75266688

STOP

LH Front and RH Rear

2шт.

11

75266707

STOP

LH Rear and RH Front

2шт.

12

75246450

BUSHING,350mm ID x 362.5mm OD x 80mm L

2шт.

13

75258148

FLANGE

2шт.

14

75325418

SHIM,444mm ID x 502mm OD x 0.45mm Thk

0,45mm

14шт.

14

75325419

SHIM,444mm ID x 502mm OD x 0.18mm Thk

0,18mm

4шт.

14

75325420

SHIM,444mm ID x 502mm OD x 0.15mm Thk

0,15mm

4шт.

15

73161844

LINK,Chain, 31.75mm Pitch

Incl. Refs. 16 - 17

1шт.

16

70918447

COTTER PIN,3/32" x 3/4"

8шт.

17

73155650

RING,363mm ID x 440mm OD x 3mm Thk

4шт.

18

73161800

BOLT,Hex, M20 x 1.5 x 70mm, Cl 10.9

32шт.

19

75320124

STUD

52шт.

20

10516871

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

48шт.

21

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

48шт.

22

75266712

COVER PLATE

Cover

10шт.

23

75266715

COVER

Cover

2шт.

24

75266735

FLANGE

Hub

2шт.

25

75257147

GASKET

12шт.

26

70912725

PLUG

4шт.

27

75266738

TRANSMISSION HOUSING

Housing

2шт.

28

75266732

COVER

Cover

2шт.

29

11112431

SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd

60шт.

30

10517071

LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk

60шт.

31

75251577

WHEEL DISC

See Figure 06.34(00)

4шт.

32

73161842

SPROCKET

2шт.

33

28995900

BALL BEARING,45mm ID x 100mm OD x 25mm W

4шт.

34

12164121

NUT,M16 x 1.5, Cl 10

52шт.

35

10517271

LOCK WASHER,16.2mm ID x 27.7mm OD x 4mm Thk

52шт.

36

70907059

HYD CONNECTOR

2шт.

37

70052519

WIRE

2шт.

38

14497131

WASHER,21mm ID x 37mm OD x 3mm Thk

32шт.

39

219-1

LUBE NIPPLE,1/8" - 27 NPTF

4шт.
