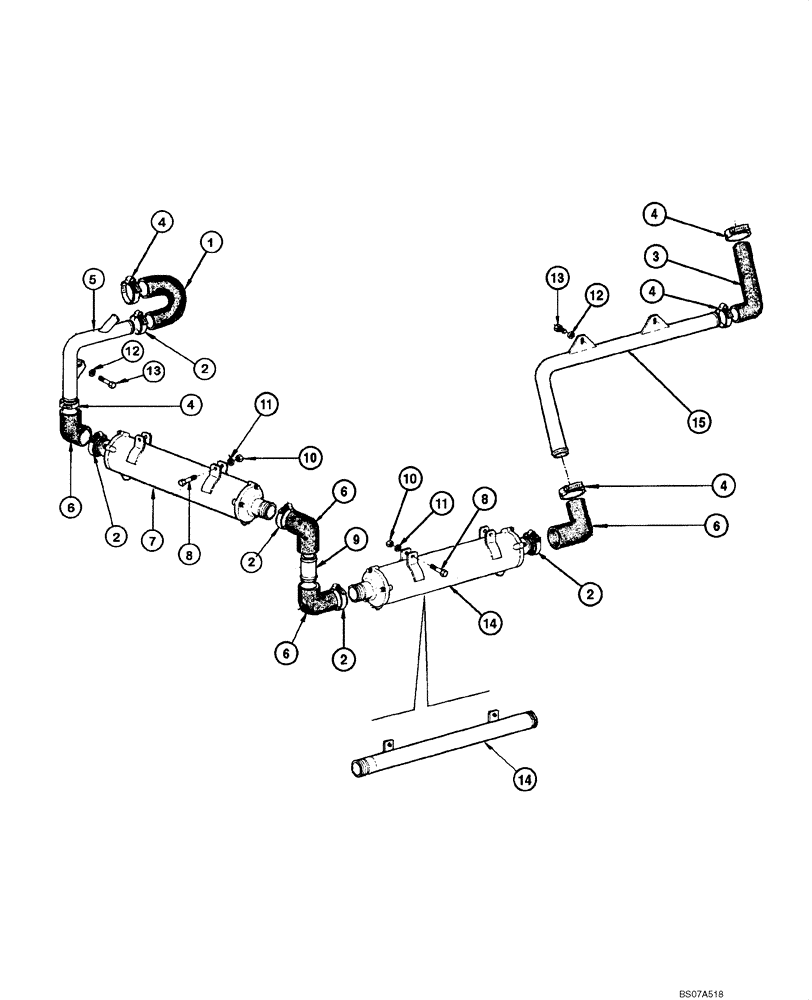

Запчасти Case 865 VHP (06.36[00]) - REAR AXLE - OIL COOLING SYSTEM (06) - POWER TRAIN

1

75324694

HOSE,51.00 mm ID, 57.00 mm ID, SAE J20R4 D1

1шт.

2

70921914

CLAMP

6шт.

3

75327720

HOSE,57.00 mm ID x 192.00 mm, SAE J20R4 D2

1шт.

4

70921913

HOSE CLIP

8шт.

5

73164399

PIPE,46.6 mm ID, 50.8 mm OD, 375, 342 mm Length

1шт.

6

75221770

ELBOW,51mm ID x 85mm L, SAE 20

4шт.

7

73164400

OIL COOLER

1шт.

8

11107631

SCREW,Hex, M10 x 70mm, Cl 10.9

4шт.

9

75324204

TUBE,46.6 mm ID, 50.8 mm OD, 70 mm Length

1шт.

10

11701721

NUT,M10, Cl 10

4шт.

11

10516879

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

4шт.

12

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

3шт.

13

16043431

SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

3шт.

14

75257700

OIL COOLER

1шт.

14

75257806

RIGID TUBE,47 mm ID, 50 mm OD, 795 mm Length

1шт.

15

75324901

TUBE

1шт.
