Запчасти Case 865 VHP (06.31[00]) - REAR AXLE DANA - ASSEMBLY (06) - POWER TRAIN

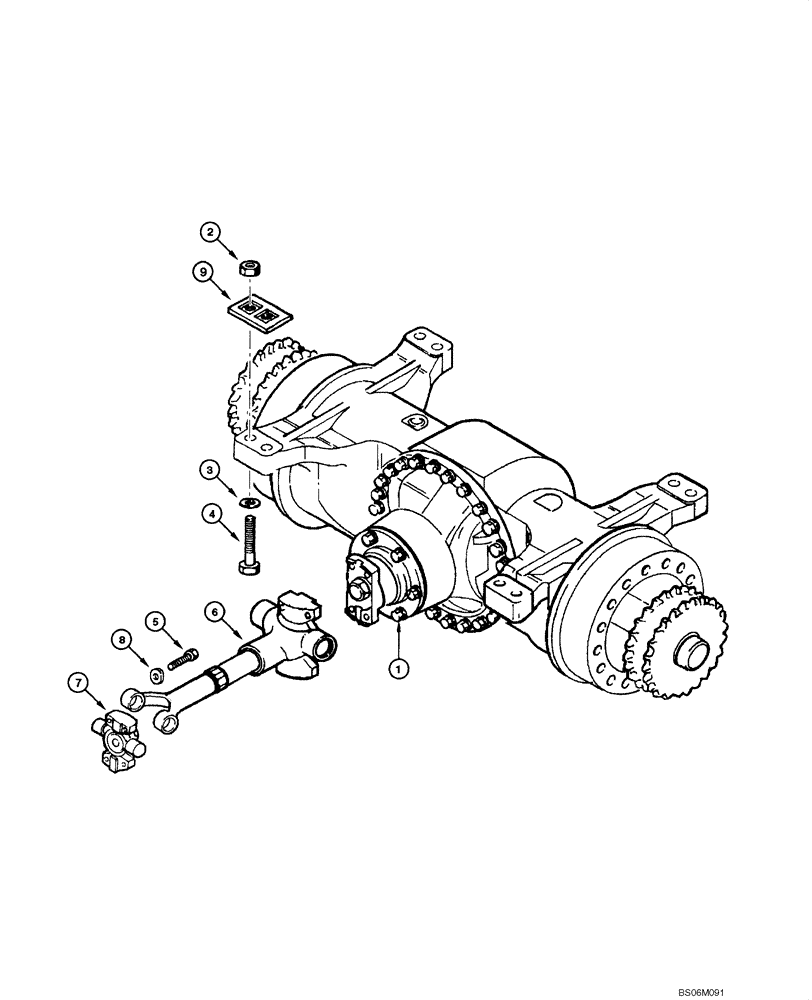

Схема запчастей Case 865 VHP - (06.31[00]) - REAR AXLE DANA - ASSEMBLY (06) - POWER TRAIN
5
7
3
1
8
4
2
6
9

Артикул

Название

Примечание

Количество

1

75266827

REAR AXLE

Rear Axle, See Figure 06.32, Incl. Refs. 1 - 9

1шт.

1

75312903

AXLE DIFFERENTIAL

1шт.

1

75312903R

REMAN-AXLE DIFFERENT

Remanufactured Axle Differential

1шт.

1

75312903C

CORE-AXLE

Return Number, AXLE DIFF

1шт.

2

12575321

NUT,M24 x 2, Cl 10

8шт.

3

14497331

WASHER,25mm ID x 44mm OD x 4mm Thk

M24 x 44 x 4

8шт.

4

15997731

BOLT,Hex, M24 x 2 x 110mm, Cl 10.9

8шт.

5

70927236

BOLT

8шт.

6

75250895

PROPELLER SHAFT

1шт.

7

75288824

SPIDER

2шт.

8

70912441

LOCK WASHER

8шт.

9

73161791

PLATE

4шт.

Выбрано товаров: 12
