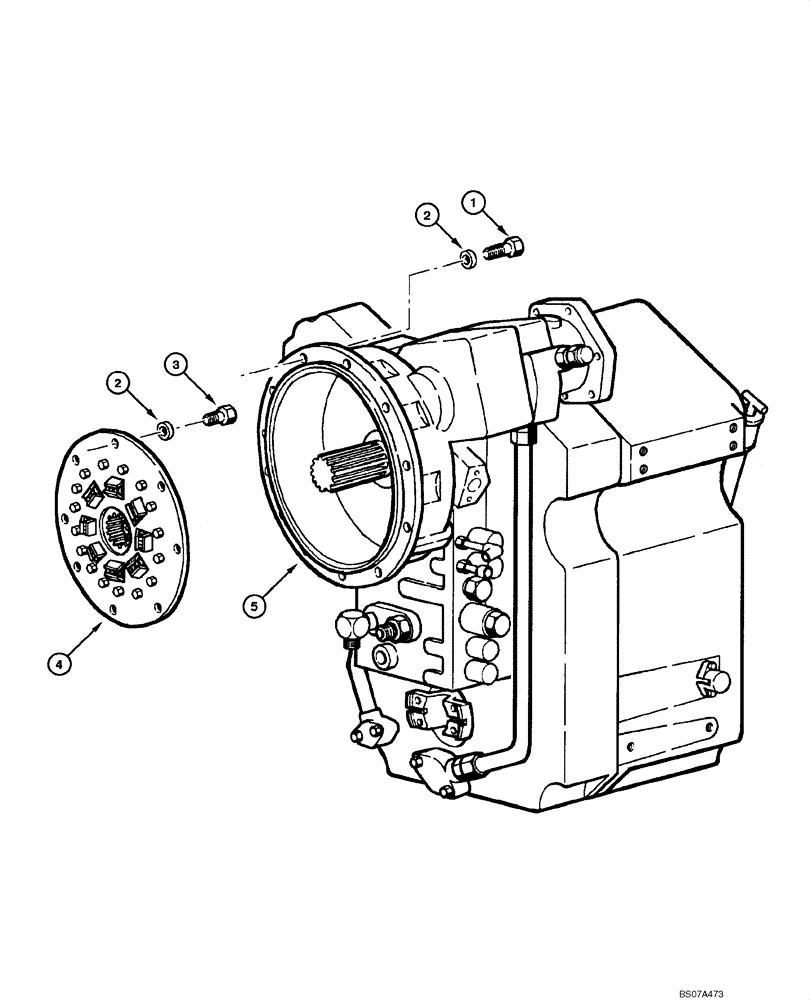

Запчасти Case 865 VHP (06.01[00]) - TRANSMISSION AND COUPLING (06) - POWER TRAIN

1

11106631

SCREW,Hex, M10 x 35mm, Cl 10.9, Full Thd

12шт.

2

70930370

WASHER,0.44" ID x 0.69" OD x 0.11" Thk

20шт.

3

70922262

SCREW

8шт.

4

75249578

DAMPER,352.25mm OD

1шт.

4

75249578R

REMAN-DAMPER

1шт.

4

75249578C

CORE-DAMPER

Return Number

1шт.

5

75312851

GEARBOX

See Figure 06.07

1шт.

5

75312851R

REMAN-TRANSMISSION

1шт.

5

75312851C

CORE-TRANSMISSION

Return Number

1шт.
