Запчасти Case 865 VHP (09.42[00]) - AIR CONDITIONING - CIRCUIT AND ASSEMBLY (09) - CHASSIS

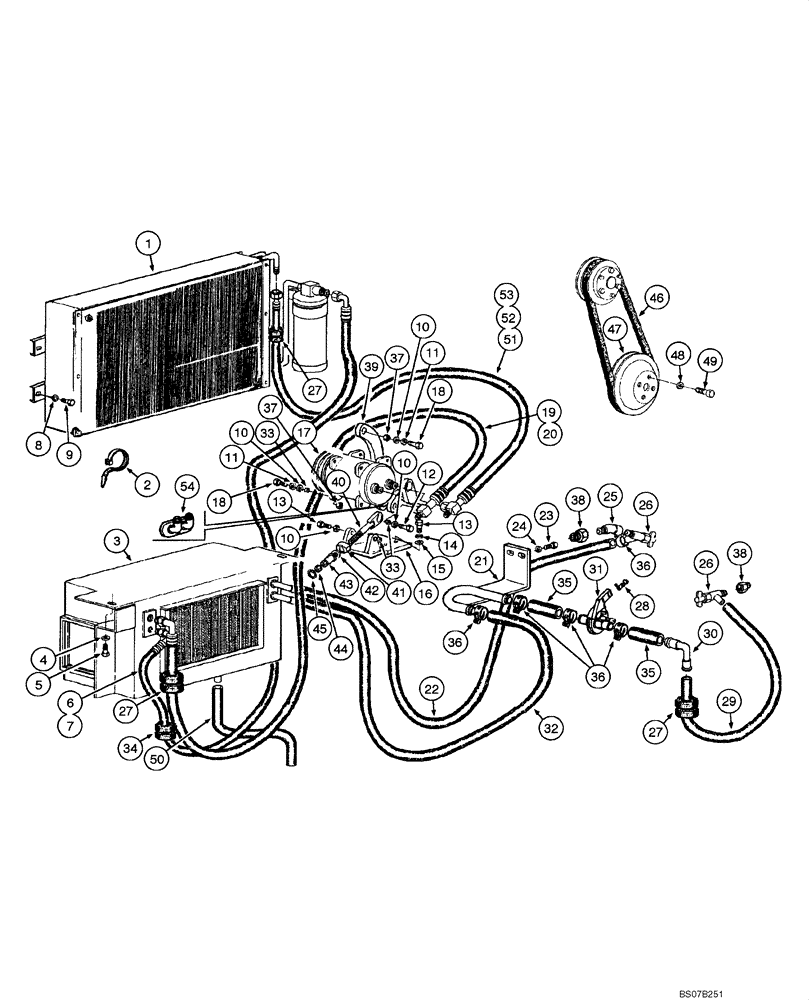

Схема запчастей Case 865 VHP - (09.42[00]) - AIR CONDITIONING - CIRCUIT AND ASSEMBLY (09) - CHASSIS
35
38
9
7
36
34
13
48
44
38
18
26
33
1
12
41
35
33
46
24
25
43
10
36
16
22
10
37
32
14
10
31
15
29
26
10
39
53
54
27
18
42
17
51
30
11
37
36
45
5
11
28
21
27
52
40
47
27
3
20
8
50
6
4
2
13
23
49
19

Артикул

Название

Примечание

Количество

1

75325651

CONDENSER

1шт.

2

75201642

CLAMP

2шт.

3

75327119

EVAPORATOR

1шт.

4

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

5

16043431

SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

6

75326214

FLEXIBLE HOSE

HOSE, Incl. Refs. 7

1шт.

7

75258843

O-RING

2шт.

8

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

8шт.

9

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

8шт.

10

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

6шт.

11

10516879

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

5шт.

12

11107231

SCREW,Hex, M10 x 50mm, Cl 10.9

2шт.

13

14420131

HEX SOC SCREW,M10 x 1.5 x 25mm, Cl 10.9, Full Thd

5шт.

14

10516879

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

3шт.

15

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

3шт.

16

87529666

SUPPORT

BRACKET

1шт.

17

87522165

AIR COMPRESSOR

COMPRESSOR A/C Assembly

1шт.

17

87522165R

REMAN-A/C COMPRESSOR

865 VHP MOTOR GRADER, TIER 3 (NA), ASN N7AF04232 & N6AF04226, COMPRESSOR A/C Assembly (1/07-)

1шт.

17

87522165C

CORE-A/C COMPRESSOR

Return Number

1шт.

18

11107031

BOLT,Hex, M10 x 45mm, Cl 10.9

5шт.

19

75325531

HOSE ASSY.

HOSE, Incl. Refs. 20

1шт.

20

75258841

O-RING

O-RING

2шт.

21

75321436

TUBE,81, 60.5 mm Length

1шт.

22

87574040

HEATER HOSE,16.00 mm ID x 2400.00 mm

1шт.

23

11107231

SCREW,Hex, M10 x 50mm, Cl 10.9

2шт.

24

12642021

WASHER

2шт.

25

87352584

FITTING

ELBOW

1шт.

26

301803R1

SHUT-OFF VALVE

2шт.

27

73150779

INSULATOR

5шт.

28

1954626C1

SPRING CLIP

1шт.

29

R55242

HEATER HOSE,15.50 mm ID x 2550.00 mm

1шт.

30

75322881

TUBE,52, 36 mm Length

1шт.

31

1331087C1

HEATER VALVE

1шт.

32

75320965

HEATER HOSE,16.00 mm ID x 410.00 mm

1шт.

33

79114762

BUSHING,10.5mm ID x 16mm OD x 15mm L

1шт.

34

75321576

INSULATOR

1шт.

35

75321442

HEATER HOSE,15.50 mm ID x 50.00 mm

2шт.

36

1954726C1

DECAL

9шт.

37

12577221

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 10, ZND

3шт.

38

70901835

BUSHING

1шт.

39

75325455

SUPPORT

1шт.

40

75325460

THREADED TIE-ROD

1шт.

41

75325462

SUPPORT

1шт.

42

10520301

WASHER,18.4mm ID x 32mm OD x 4mm Thk

1шт.

43

75326810

LINK

1шт.

44

10790311

NUT

1шт.

45

11066675

LOCKING RING

1шт.

46

75327255

V-BELT,13.00 mm W x 1025.00 mm L

1шт.

47

75286359

PULLEY

1шт.

48

12638601

WASHER,M10 x 18 x 2

4шт.

49

75206638

SCREW

M10 x 1.50 x 25

4шт.

50

75255010

HOSE

1шт.

51

75325530

HOSE ASSY.

HOSE, Incl. Refs. 52, 53

1шт.

52

75258842

O-RING

1шт.

53

75258841

O-RING

1шт.

54

87363102

HYD CONNECTOR

1шт.

Выбрано товаров: 56
