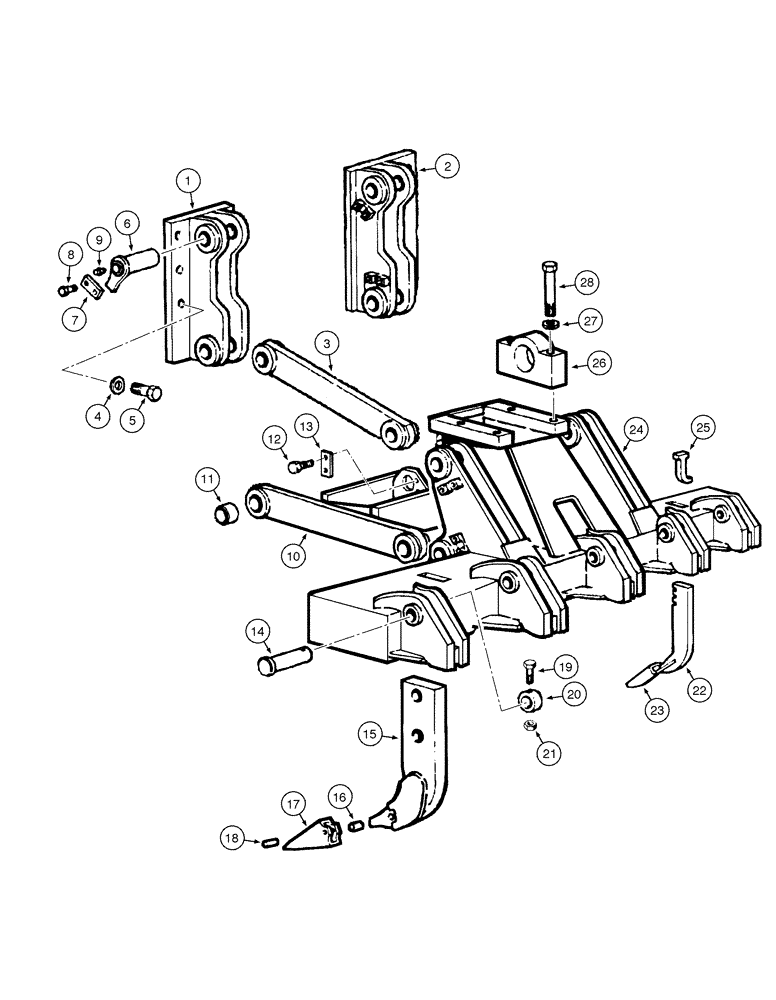

Запчасти Case 865 VHP (09.16[00]) - RIPPER - ASSEMBLY (09) - CHASSIS

1

75267056

SUPPORT

L.H.

1шт.

2

75267011

SUPPORT

1шт.

3

75266981

ARM

2шт.

4

70928370

WASHER,1.06" ID x 2.25" OD x 0.25" Thk

12шт.

5

15997231

BOLT,Hex, M24 x 2 x 65mm, Cl 10.9, Full Thd

12шт.

6

75216516

PIN,49.99mm OD x 202.5mm L

8шт.

7

75216512

LOCK

8шт.

8

15540331

BOLT,Hex, M12 x 1.25 x 25mm, Cl 10.9, Full Thd

16шт.

9

13407211

LUBE NIPPLE,M10 x 1

9шт.

10

75267152

SUPPORT

Stucture, Ripper

1шт.

11

75216487

BUSHING,50.2mm ID x 60.1mm OD x 43mm L

Tooth Ripper

16шт.

12

14254231

LOCK BOLT,Hex, M14 x 1.5 x 25mm, Cl 10.9, Full Thd

Shank Tip

2шт.

13

8270126

PLATE

2шт.

14

75216513

PIN

Bracket

3шт.

15

75267647

RIPPER TOOTH

TOOTH, Ripper; Incl. Refs. 16 - 18

5шт.

16

8282870

SLEEVE

5шт.

17

75268444

TEETH

5шт.

18

8282869

ROLL PIN

5шт.

19

11113631

SCREW,Hex, M12 x 70mm, Cl 10.9

3шт.

20

75216511

SPACER

3шт.

21

10719321

NUT,M12 x 1.75, Cl 10

Rest

6шт.

22

75267173

SHANK

SHANK, Replaces 75250226

5шт.

23

75267179

TEETH

TOOTH TIP

5шт.

24

75268390

SUPPORT

STRUCTURE, Ripper

1шт.

25

73125907

KEY

5шт.

26

75266854

PLATE

BEARING

2шт.

27

10517679

LOCK WASHER,24.3mm ID x 38.3mm OD x 5.5mm Thk

4шт.

28

15861731

BOLT,Hex, M24 x 2 x 130mm, Cl 10.9

4шт.
