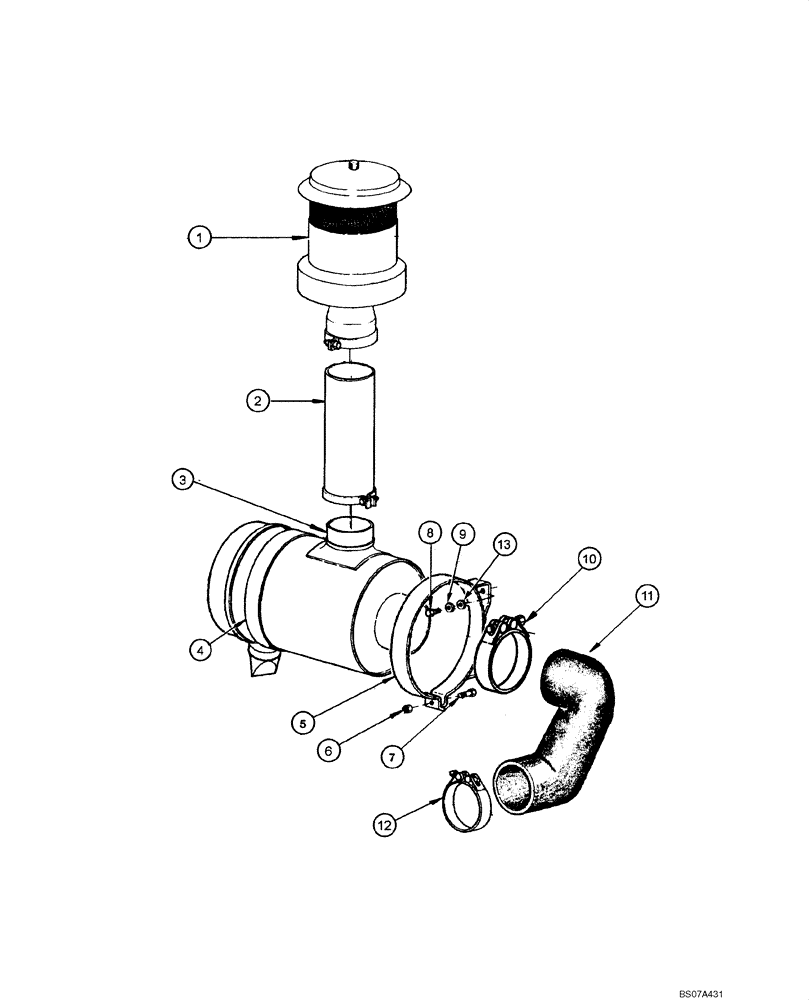

Запчасти Case 865 VHP (02.07[00]) - AIR CLEANER - MOUNTING (SN N5AF03016 - ) (02) - ENGINE

75264629

FILTER ASSY

Assy., Incl. Ref. 1 - 13

1шт.

1

REF

INSTRUCTION

See Figure 02.09

1шт.

2

75261233

TUBE

1шт.

3

REF

INSTRUCTION

Air Cleaner, See Figure 02.08

1шт.

4

71100461

BRACKET

2шт.

5

71100653

CLAMP

1шт.

6

16100821

NUT,M8, Cl 10

2шт.

7

16044331

SCREW,Hex, M8 x 1.25 x 55mm, Cl 10.9

2шт.

8

11106431

SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

9

10516873

WASHER

4шт.

10

L129159

CLAMP,5-1/4" - 6-1/8", Worm Gear

1шт.

11

75327715

AIR HOSE,101.60 mm ID, 132.00 mm ID x 280.00 mm

1шт.

12

70929419

CLAMP

1шт.

13

12646821

WASHER,10.2mm ID x 25mm OD x 2mm Thk

4шт.
