(08.10[00]) - BLADE HYDRAULIC CIRCUIT - LOCK (3 HOLES)

Запчасти Case 865 VHP (08.10[00]) - BLADE HYDRAULIC CIRCUIT - LOCK (3 HOLES) (08) - HYDRAULICS

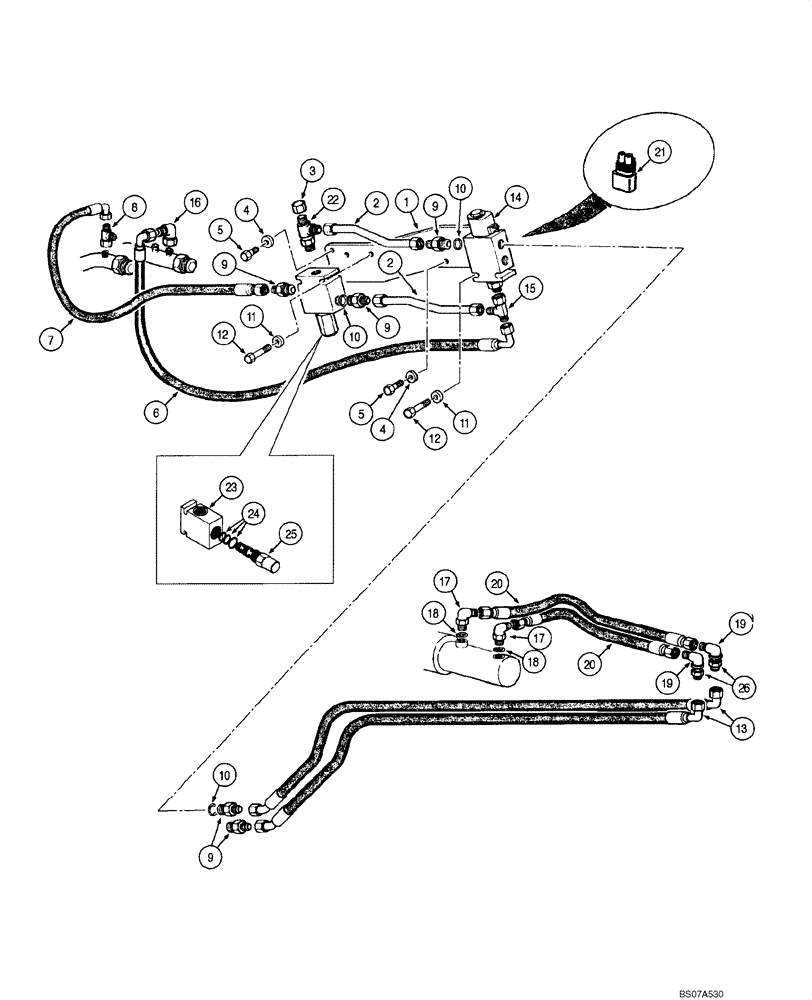

Схема запчастей Case 865 VHP - (08.10[00]) - BLADE HYDRAULIC CIRCUIT - LOCK (3 HOLES) (08) - HYDRAULICS
10
7
10
11
11
8
19
4
19
17
13
5
25
10
12
5
23
4
15
18
24
20
14
18
3
12
9
17
2
16
20
9
2
6
9
26
22
1
9
21
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

75280725

SUPPORT

1шт.

2

75260090

TUBE

2шт.

3

70919552

CAP

1шт.

4

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

5

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

2шт.

6

75252434

FLEXIBLE HOSE

Hose has straight female hose ends, not 90 degree as shown

1шт.

7

75252433

FLEXIBLE HOSE

1шт.

8

70921297

3 WAY CONNECTION

2шт.

9

70922522

HYD CONNECTOR

Incl. 10

4шт.

10

70921885

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

11

70928190

WASHER

2шт.

12

70930238

SCREW

2шт.

13

75252380

FLEXIBLE HOSE

2шт.

14

73124881

HYDRAULIC VALVE

Valve saddle lock see Figure 08.68

1шт.

15

70921297

3 WAY CONNECTION

1шт.

16

70921013

ELBOW

1шт.

17

70923905

ELBOW

2шт.

18

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

19

218-693

ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

Incl. 26

2шт.

20

70659547

HYDRAULIC HOSE

2шт.

21

75322270

ELEC CONNECTOR

1шт.

22

70930806

3 WAY CONNECTION

1шт.

23

75323837

HYDRAULIC VALVE

Incl. 24,25

1шт.

24

75313876

SEAL KIT

1шт.

25

NSS

NOT SOLD SEPARAT

Valve

1шт.

26

218-1254

LOCK NUT,Blkhd, 9/16"-18

2шт.
