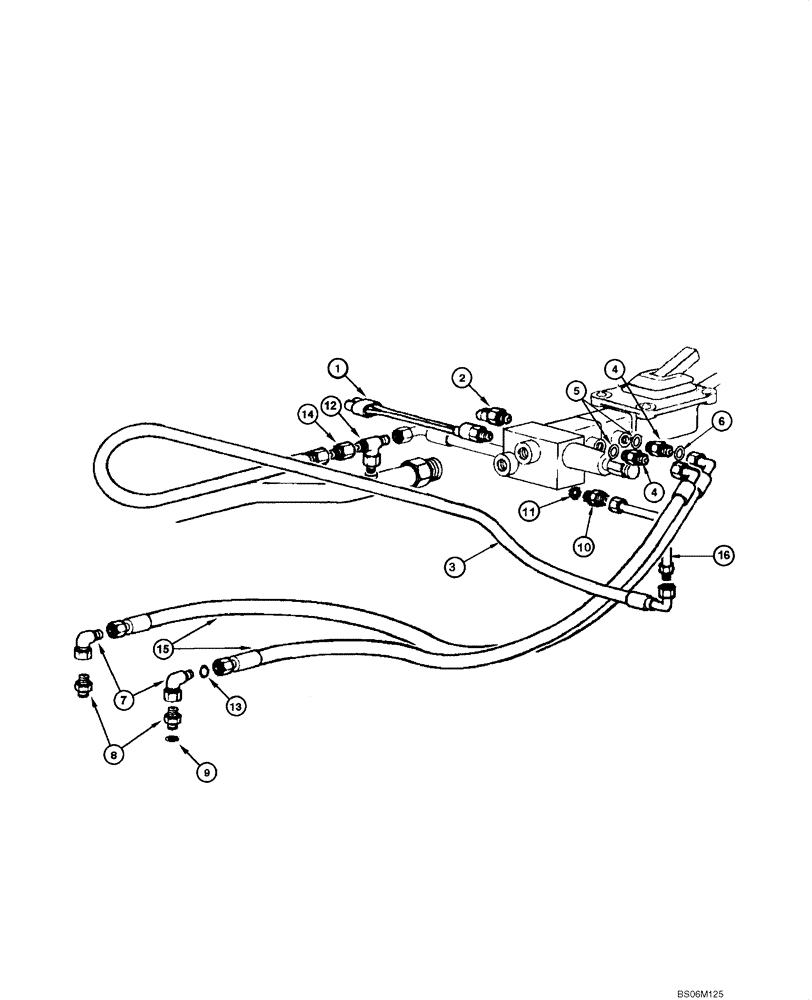

Запчасти Case 865 VHP (07.06[00]) - BRAKE HYDRAULIC CIRCUIT (GRAZIANO) (07) - BRAKES

1

75254572

SWITCH

1шт.

2

70094334

LIGHT SWITCH

1шт.

3

73155834

FLEXIBLE HOSE

1шт.

4

75239803

LUBE NIPPLE

2шт.

5

14437785

O-RING,11.3mm ID x 2.4mm

2шт.

6

70923841

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

7

70921014

3 WAY CONNECTION

1шт.

8

75253076

HYD CONNECTOR

2шт.

9

14437585

O-RING,8.00mm ID x 1.50mm

4шт.

10

79066934

HYD CONNECTOR

1шт.

11

14437585

O-RING,8.00mm ID x 1.50mm

1шт.

12

75253084

HYD CONNECTOR

2шт.

13

14437585

O-RING,8.00mm ID x 1.50mm

2шт.

14

70926786

REDUCER

1шт.

15

75241267

FLEXIBLE HOSE

2шт.

16

75327338

TUBE ASSY.,9.7 mm ID, 12.7 mm OD, 110, 107 mm Length

2шт.
