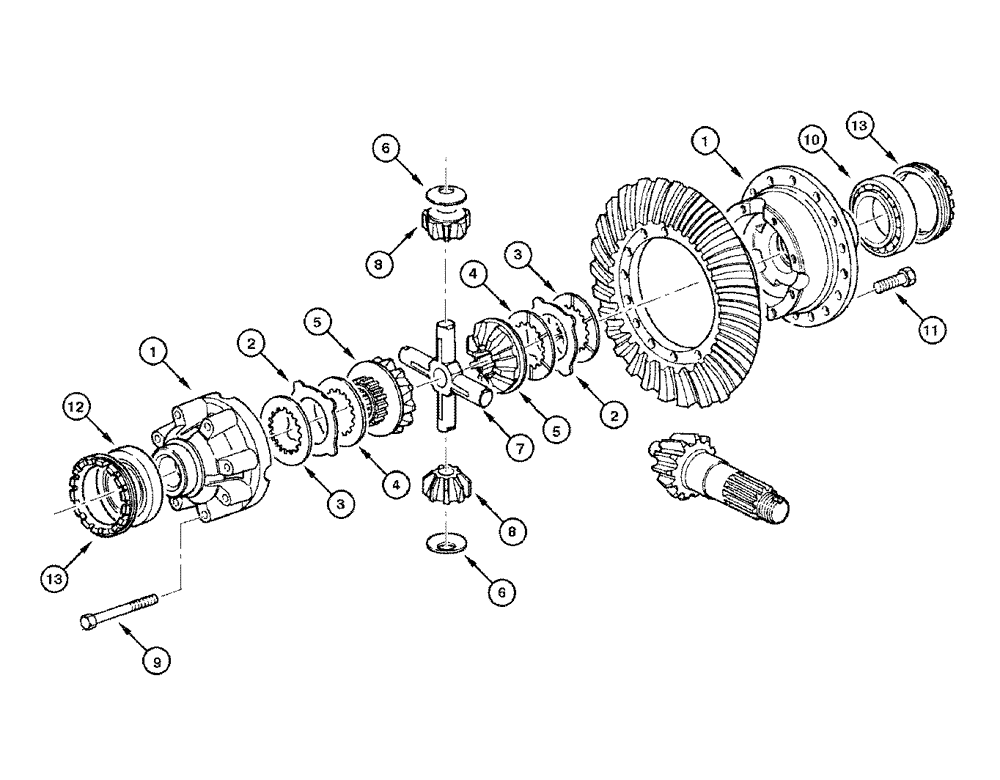

Запчасти Case 865 DHP (6-058) - REAR AXLE GRAZIANO - DIFFERENTIAL (06) - POWER TRAIN

75289086

DIFFERENTIAL

Includes: Ref. 1 - 9

1шт.

1

75289085

CASE

HOUSING

1шт.

2

75289078

BRAKE DISC

2.00mm

8шт.

2

75289079

BRAKE DISC

2.10mm

8шт.

2

75289080

BRAKE DISC

2.20mm

8шт.

2

75289081

BRAKE DISC

2.30mm

8шт.

3

79077092

CLUTCH PLATE,63mm ID x 129.5mm OD x 2.9mm Thk

DISC brake

4шт.

4

79077090

CLUTCH PLATE,63mm ID x 129.5mm OD x 3.85mm Thk

DISC brake

2шт.

5

75289072

GEAR

2шт.

6

79047222

THRUST PLATE

4шт.

7

75289073

SPIDER

1шт.

8

79047219

IDLER PINION

GEAR planetary

4шт.

9

75287521

SCREW

BOLT

8шт.

10

75289083

BEARING

7шт.

11

14257831

BOLT,Hex, M16 x 1.5 x 35mm, Cl 10.9

18шт.

12

79042277

ROLLER BEARING,80 mm ID x 125 mm OD x 29 mm

1шт.

13

79047214

RING NUT

2шт.
