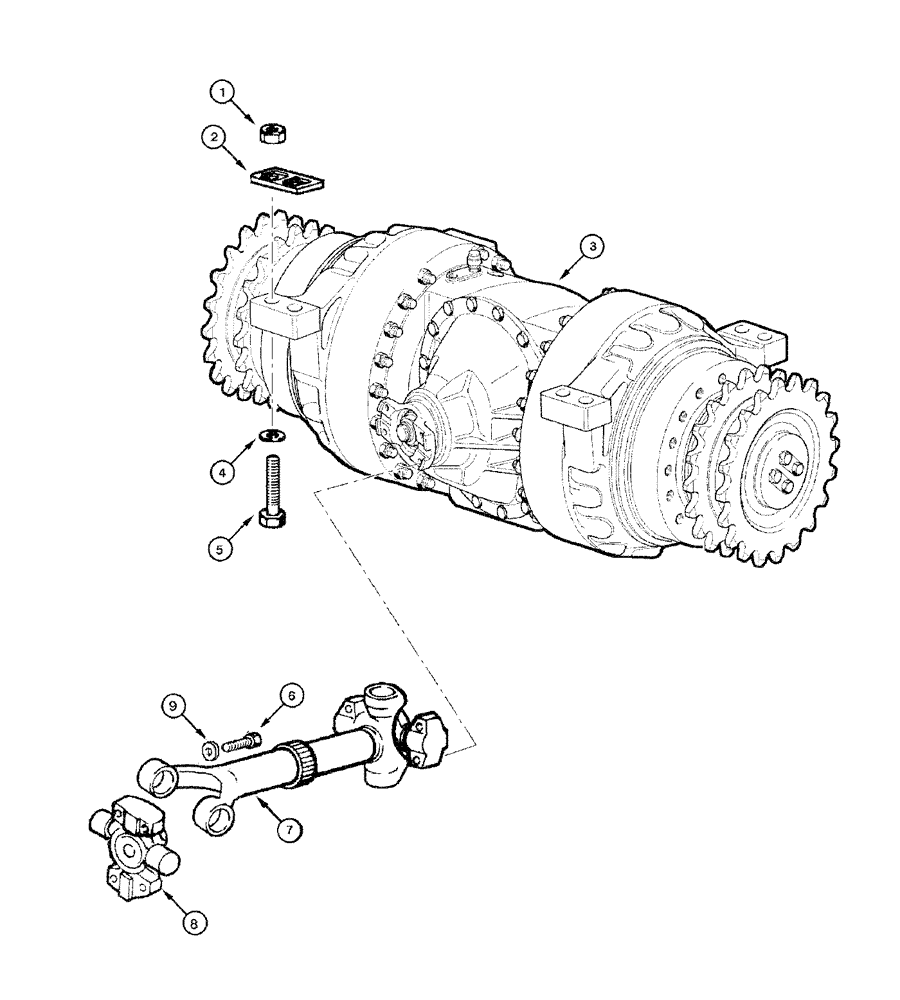

Запчасти Case 865 DHP (6-048) - REAR AXLE GRAZIANO ASSEMBLY (06) - POWER TRAIN

1

12575321

NUT,M24 x 2, Cl 10

8шт.

2

73161791

PLATE

4шт.

3

75250673

REAR AXLE

(Figure 6-050)

1шт.

3

75250673R

REMAN-REAR AXLE

1шт.

3

75250673C

CORE-REAR AXLE

Return Number

1шт.

4

14497331

WASHER,25mm ID x 44mm OD x 4mm Thk

M24 x 44 x 4

8шт.

4

75283372

WASHER

WASHER

2шт.

5

15997731

BOLT,Hex, M24 x 2 x 110mm, Cl 10.9

8шт.

5

75257056

BOLT,Hex, M24 x 2 x 110mm

BOLT

2шт.

6

70927236

BOLT

BOLT

8шт.

7

75250895

PROPELLER SHAFT

Includes: Ref. 8

1шт.

8

75288824

SPIDER

SPIDER

2шт.

9

70912441

LOCK WASHER

lock

8шт.
