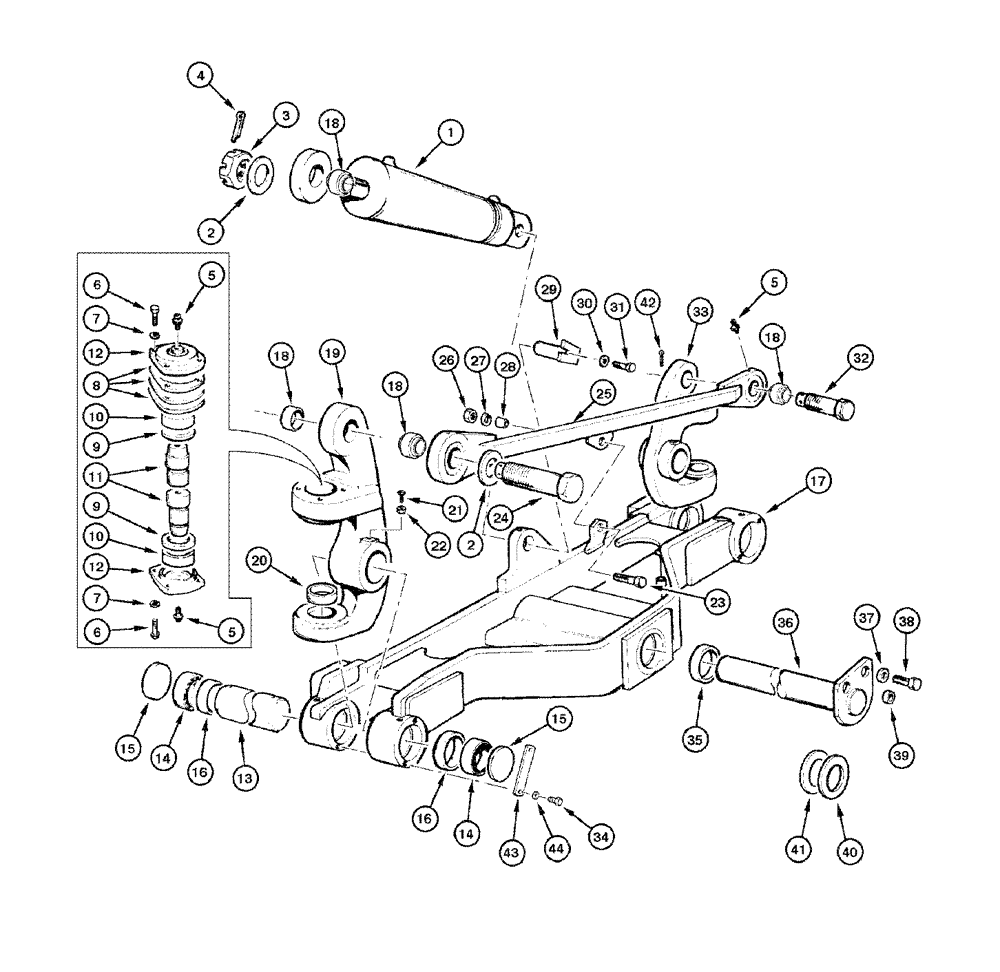

Запчасти Case 865 DHP (6-044) - FRONT AXLE ASSEMBLY (06) - POWER TRAIN

1

REF

INSTRUCTION

CYLINDER tilt (Figure 8-102)

1шт.

2

70926208

WASHER

WASHER

2шт.

3

70911061

SLOTTED NUT

2шт.

4

70901344

COTTER PIN,1/4" x 2"

1шт.

5

70914465

LUBE NIPPLE

FITTING grease

10шт.

6

70921076

SCREW,3/8"-16 x 1 1/4"

16шт.

7

70929156

WASHER,0.41" ID x 0.81" OD x 0.06" Thk

16шт.

8

73124681

SHIM,73.66mm ID x 82.56mm OD x 0.13mm Thk

(0.13 mm)

10шт.

8

73124683

SHIM,.020" Thk

0.15mm

10шт.

8

73124682

SHIM,73.66mm ID x 82.56mm OD x 0.18mm Thk

(0.18 mm)

10шт.

9

73124671

SEAL

RETAINER

4шт.

10

73124678

TAPERED BEARING,34.92mm ID x 72.23mm OD x 25.4mm W

4шт.

11

73124680

PIN,44.4mm OD x 101.6mm L

4шт.

12

73124522

COVER

4шт.

13

75238951

PIN,50.8mm OD x 234mm L

2шт.

14

73124679

NEEDLE BEARING,Needle, 50.8mm ID x 60.33mm OD x 44.45mm W

4шт.

15

70930423

PLUG

CAP

4шт.

16

73124672

SEAL

RETAINER

4шт.

17

73162371

SHAFT

1шт.

18

70668028

SPHERICAL BEARING,31.74mm ID x 50.8mm OD x 27.76mm W

SIDE

6шт.

19

73124520

ARTICULATION

FORK

1шт.

20

73125713

SEALING RING

RETAINER

2шт.

21

73125712

SET SCREW

BOLT

2шт.

22

70913830

NUT

2шт.

23

70922544

SCREW

BOLT

1шт.

24

70683838

SCREW,Hex, 1-1/4" - 7 x 5-1/4", Gr 8

BOLT

1шт.

25

73125722

TOP LINK

BAR

1шт.

26

70911030

NUT

1шт.

27

70914726

LOCK WASHER

1шт.

28

73125726

SPACER,19.05mm ID x 26.67mm OD x 3.81mm L

4шт.

29

70673051

PIN

1шт.

30

70677006

WASHER,10.31mm ID x 22.23mm OD x 4.76mm Thk

1шт.

31

70922763

SCREW

BOLT

1шт.

32

70683837

BOLT,Hex, 1-1/4" - 7 x 4.22"

BOLT

1шт.

33

73124519

ARTICULATION

FORK

1шт.

34

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

8шт.

35

75284007

BUSHING,50.88mm ID x 60.38mm OD x 69.4mm L

2шт.

36

75249866

SHAFT

1шт.

37

70930850

WASHER,0.53" ID x 1.5" OD x 0.25" Thk

2шт.

38

11113231

BOLT,Hex, M12 x 50mm, Cl 10.9

2шт.

39

73153515

SPACER,13mm ID x 25.4mm OD x 14.5mm L

2шт.

40

73135173

WASHER,52.32mm ID x 101.6mm OD x 1.52mm Thk

SHIM

1шт.

41

73135174

WASHER,52.32mm ID x 101.6mm OD x 3.42mm Thk

SHIM

1шт.

42

70901345

COTTER PIN,1/4" x 2 1/2"

1шт.

43

75238952

PLATE

4шт.

44

10516471

LOCK WASHER

8шт.
