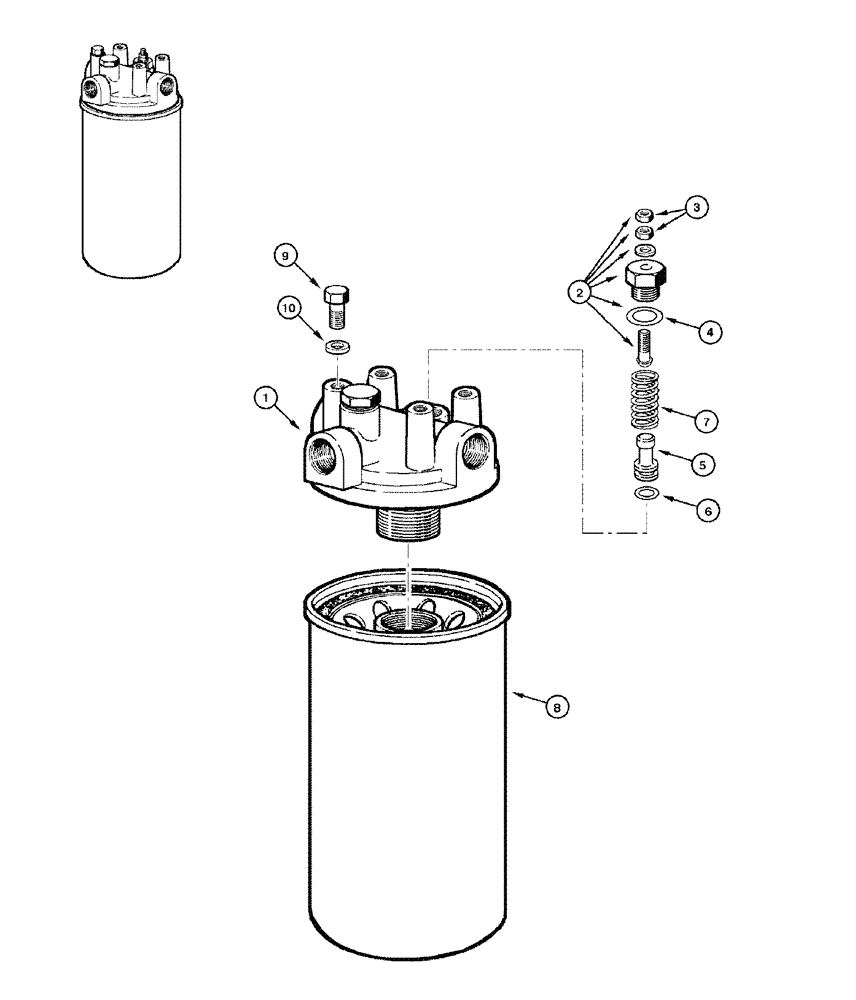

Запчасти Case 865 DHP (6-010) - TRANSMISSION OIL FILTER (06) - POWER TRAIN

149934A1

FILTER ASSY

oil, Includes: Ref. 1 - 8

1шт.

1

75289106

COVER

Includes: Ref. 2 - 7

1шт.

2

75285549

HYDRAULIC VALVE

Includes: Ref. 3 and 4

1шт.

3

75285548

NUT

2шт.

4

70935176

O-RING,0.087" Thk x 0.644" ID, -908, Cl 8, 90 Duro

1шт.

5

75285551

PISTON

1шт.

6

70923548

O-RING,-111, 70 Duro, .424" ID x .103" Thk

1шт.

7

75285550

SPRING

1шт.

8

149935A1

ELEMENT

1шт.

9

70926149

SCREW

BOLT

4шт.

10

76022735

WASHER

4шт.
