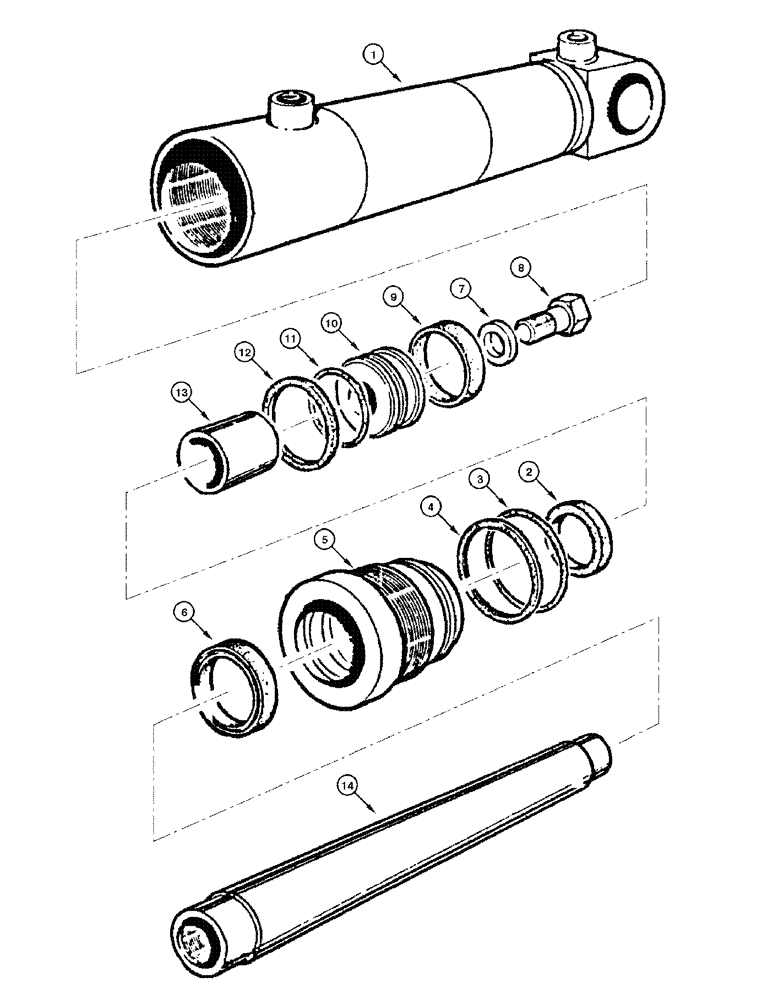

Запчасти Case 865 DHP (5-006) - STEERING CYLINDER ASSEMBLY (05) - STEERING

73065116

CYLINDER

steering, Includes: Ref. 1 - 14

1шт.

75266846R

REMAN-HYD CYLINDER

865 DHP MOTOR GRADER ASN N5AF04007 (2/05-), Reman for New PN 73065116

1шт.

75266846C

CORE-HYD CYLINDER

Return Number

1шт.

1

73065115

CYLINDER

TUBE

1шт.

2

73069566

SEAL,38.1mm ID x 50.8mm OD x 9.53mm Thk

SEAL

1шт.

3

70924158

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

4

73063363

RING

SEAL

1шт.

5

73065105

PISTON

HEAD

1шт.

6

73055125

SEAL,38.1mm ID x 54.08mm OD x 7.92mm Thk

1шт.

7

70931306

WASHER

1шт.

8

70921169

SCREW

BOLT

1шт.

9

73065110

SEALING RING

1шт.

10

73132432

PISTON

1шт.

11

70923684

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

1шт.

12

73065109

OIL SCRAPER RING

SEAL

1шт.

13

73065106

BUSHING,38.2mm ID x 44.54mm OD x 50.8mm L

1шт.

14

73132430

PISTON

ROD

1шт.

15

73065112

SEAL KIT

repair, Includes: Ref. 2, 3, 4, 6, 9, 11 and 12

1шт.
