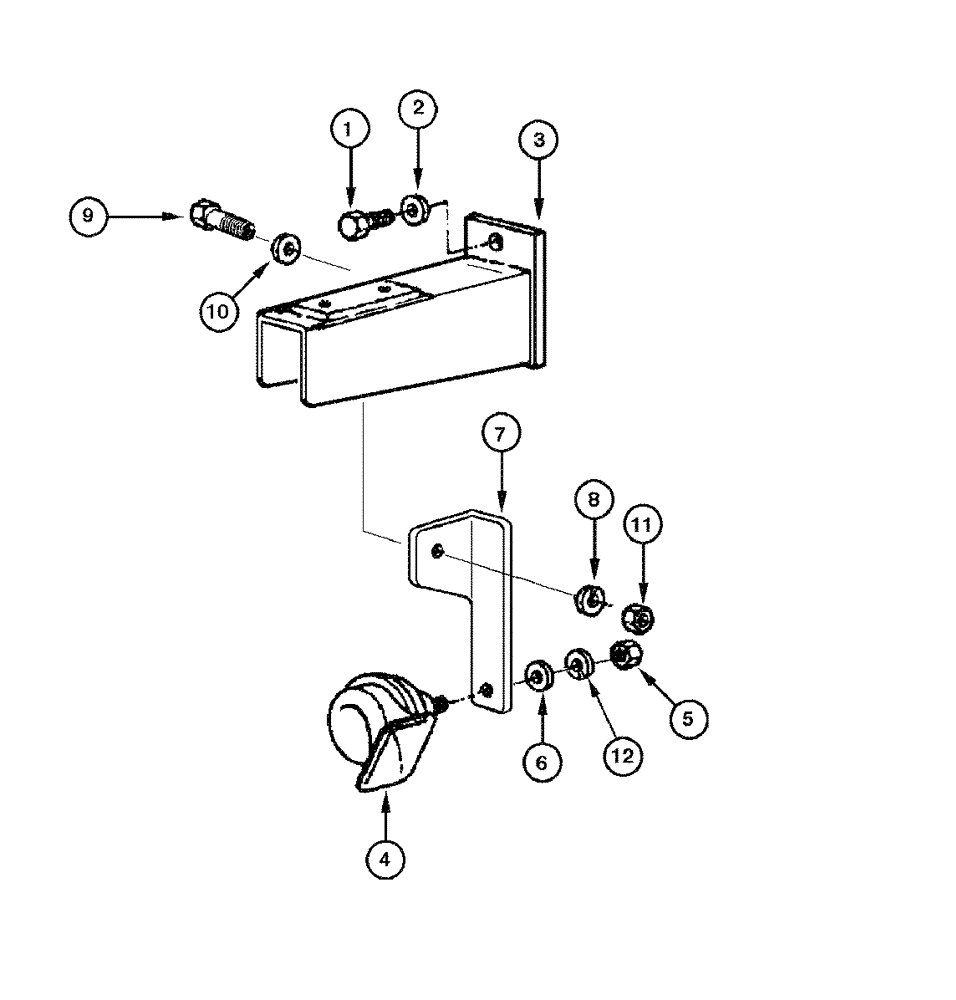

Запчасти Case 865 DHP (4-032) - ELECTRIC SYSTEM - HORN (04) - ELECTRICAL SYSTEMS

1

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

4шт.

2

10516873

WASHER

4шт.

3

75251148

SUPPORT

BRACKET headlight

2шт.

4

79114714

HORN

1шт.

5

16100821

NUT,M8, Cl 10

1шт.

6

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

7

75320117

BRACKET

horn

1шт.

8

10516613

WASHER

1шт.

9

16043431

SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

10

12638501

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

1шт.

11

14097910

NUT

1шт.

12

10516673

WASHER

WASHER lock

1шт.
